Description

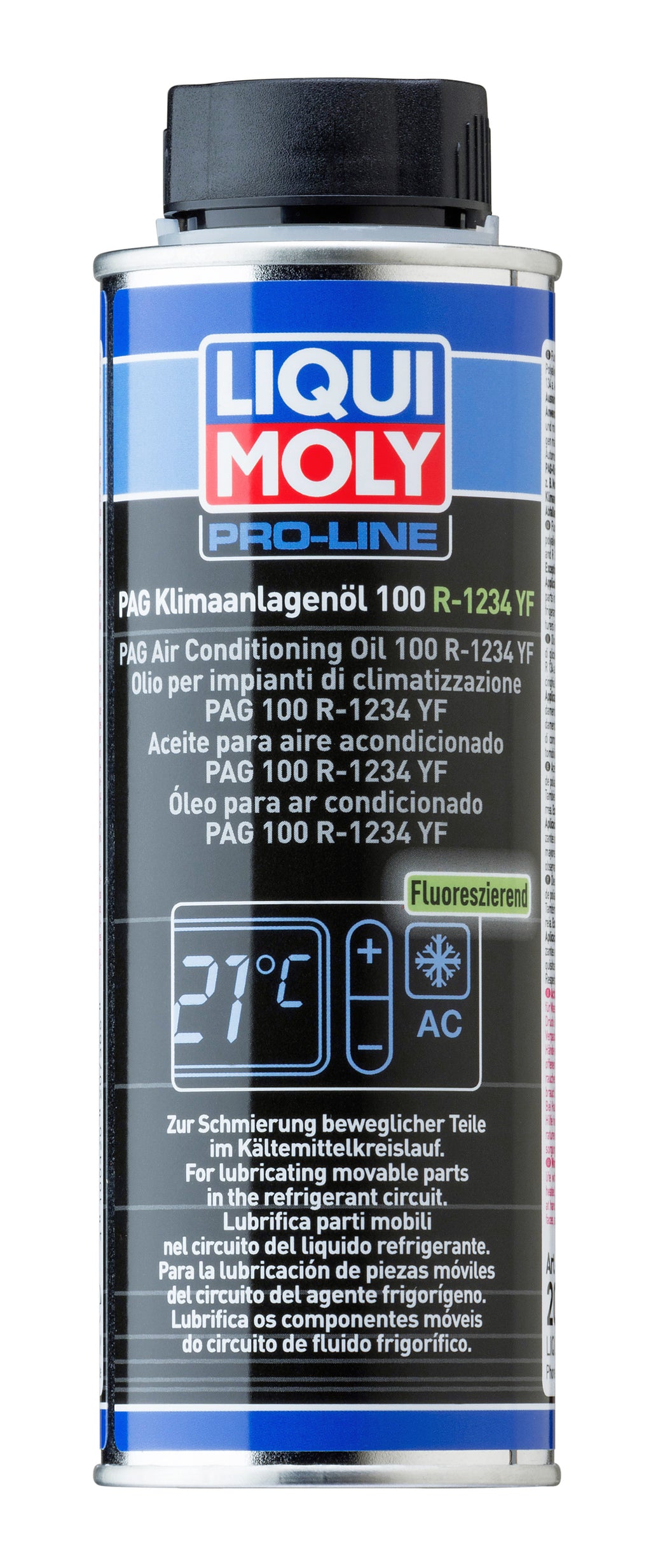

Fully synthetic oil based on polyalkylene glycol (PAG). For lubricating, sealing and cooling sliding and rotating parts in the refrigerant compressors and refrigerant circuits in passenger and commercial vehicle air conditioning systems. Mixes very well with type R1234yf and R134a refrigerants. Is hygroscopic, absorbs moisture from the ambient air and is therefore filled under nitrogen. Meets the requirements of important refrigerant compressor and refrigeration system manufacturers. The fluorescent color allows leaks to be located quickly using a UV lamp.
AREAS OF APPLICATION
- For wetting seals in the refrigerant circuit before assembly and for topping up the factory filled refrigerant oil in the case of repairs
- Also for the first filling of passenger and commercial vehicle air conditioning systems with refrigerant type R1234yf or R134a
- For hybrid vehicles filled with R1234yf and in which electrically and belt-driven air conditioning compressors are used
APPLICATION
- To wet the seals, apply the oil with a brush to ensure that the system is well sealed
- To top up or replace the refrigerant oil in passenger or commercial vehicle air conditioning systems, pour into the special filling cylinder and then add to the refrigerant circuit via the air conditioning system filling device
- If there are leaks in the refrigerant circuit, examine the refrigerant lines of the vehicle using a UV lamp in a dark room
- The UV light will render the yellow fluorescent color in the PAG oil escaping at the leak visible
- Note: Always seal the oil container after use, as it absorbs moisture from the ambient air
- PAG air conditioning oils must not be mixed or disposed of with waste oil, eg. motor and transmission oils
- PAG air conditioning oils must be collected separately and disposed of in accordance with the waste code (see safety data sheet)
- The specifications and instructions from the unit or vehicle manufacturer must be followed
PEAK PERFORMANCE. MAXIMUM PROTECTION
- For lubricating movable parts in the refrigerant circuit.
ADDITIONAL INFORMATION
- Fluorescent, fully synthetic air conditioning system oil based on polyalkylene glycol
- Highly compatible and miscible with R-1234 YF and R 134 a
- Also for hybrid vehicles with belt-driven compressors
- Exception: Vehicles with electrically driven compressors
- Application: For lubricating, sealing and cooling sliding and rotating parts in the refrigerant circuit
- Fulfills the requirements of major refrigerant compressor manufacturers
- Note the automobile manufacturers’ instructions
PROPERTIES
- For refrigerants of type r1234yf and type r134a
- Fully synthetic
- Hygroscopic
- Cooling function
- Outstanding lubricating action
- Prevents seals from swelling
- Fluorescent
- Backwards compatible
- No risk of confusion due to adding the wrong product
- No second oil container required for a/c units
- Double endcapped pag's
TECHNICAL DATA
| Density | 0.9895 |
| Oil type | fully synthetic |
| Net weight (kg) | 0.247 |
| Gross weight (kg) | 0.313 |
| Container contents | 250 ml |
