Description
Lemarks Switches & Sensors are developed using over 50 years’ experience in development and manufacturing of vehicle electronics and engine management components.

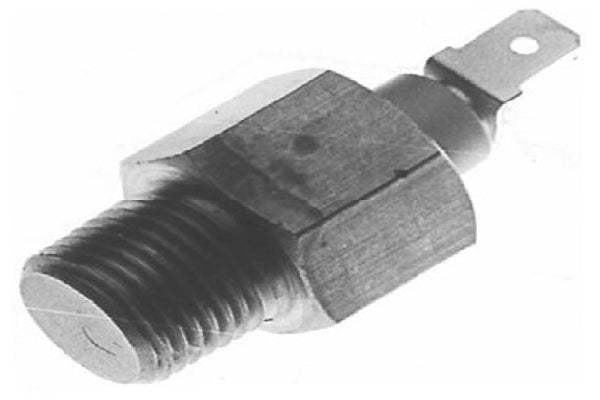

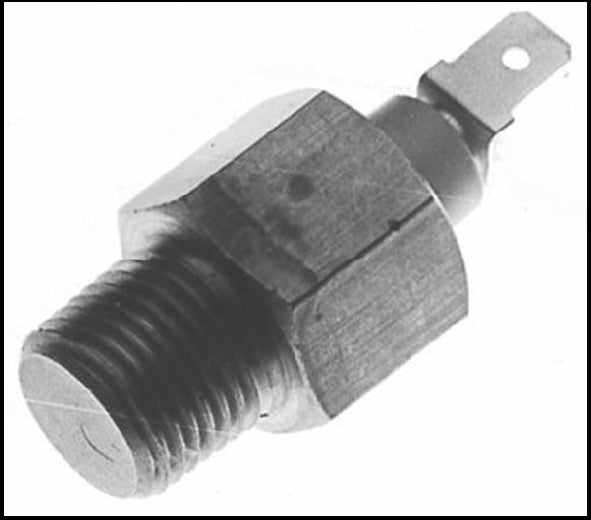

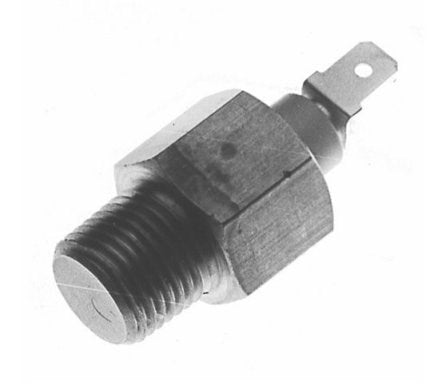

Delivering unrivalled accuracy, Lemarks Temperature Transmitters are designed and manufactured to withstand the harshest operating conditions and remain reliable for an extended lifespan when compared to market alternatives.
FEATURES
- Developed using the latest sensory technology
- Manufactured using high standard materials to ensure long life
- Tested to meet or exceed OE Standards
CAUSES OF FAILURE
- Damaged resistor
- Corrosion
SYMPTOMS
- Incorrect or No Temperature reading on dashboard
ALSO KNOWN AS
- Temperature Sender, Coolant Sender
WARRANTY
- 5 Years Warranty
CROSS REFERENCES
- FIAT: 4189508, 4334613, 4414779, 7512908, 7588847, 7588920 | SEAT: SE141947000A | ZASTAVA: 01450292
TECHNICAL DATA
| Connector Shape | Round |
| Country of Origin | Spain |
| Edge | EDG53600 |
| Height (mm) | 23.4 |
| Housing Colour | Grey |
| Length (mm) | 40.4 |
| Net Weight (kg) | 0.04 |
| No of poles | 1 |
| Spanner Size | 21 |
| Switch Point | 115 |
| Thread Size | M16 x 1.5 Taper |
| Width (mm) | 23.4 |
