Description
Intermotor Switches & Sensors are developed using over 50 years’ experience in development and manufacturing of vehicle electronics and engine management components.

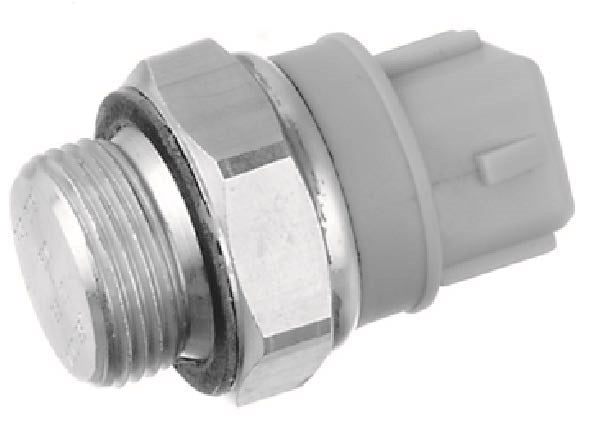

Intermotor Radiator Fan Switches accurately monitor engine temperature to determine whether the radiator fan (s) are on or off.
FEATURES
- Developed using the latest sensory technology
- Manufactured using high standard materials to ensure long life
- Tested to meet or exceed OE Standards
CAUSES OF FAILURE
- Failed Internal Components
SYMPTOMS
- Engine Overheating
- Fan Constantly On
ALSO KNOWN AS
- RFS, Rad Fan Switch
WARRANTY
- Lifetime Warranty
CROSS REFERENCES
- FORD: 6168438, 7001606, 89BB8B607AA, 89BB8B607AB, 89BB8B607AC
TECHNICAL DATA
| Connector Shape | Angular |
| Country of Origin | Spain |
| Edge | EDG50018 |
| Height (mm) | 32.5 |
| Housing Colour | Red |
| Length (mm) | 44.4 |
| Net Weight (kg) | 0.064 |
| No of poles | 4 |
| Ring Colour | White |
| Spanner Size | 29 |
| Technical Information | Circuit N.O./N.O. |
| Technical Information number | 95/100° - 90/95° |
| Thread Size | M22 x 1.5 |
| Width (mm) | 32.5 |
