Description
Providing unmatched dependability, Intermotor's range of Oil Pressure Sensors consistently provide precise feedback and resistance to harsh operating conditions.

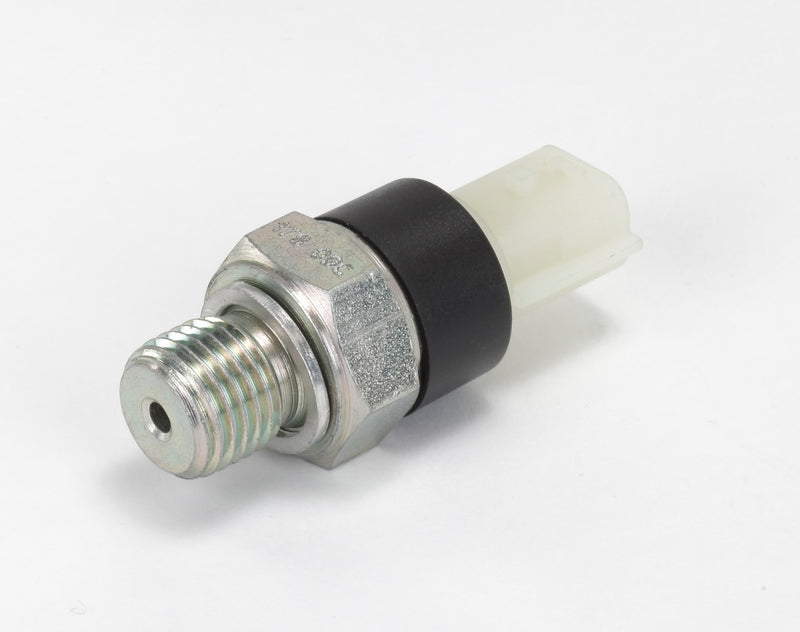

Built to measure pressure of oil in the engine, Lucas’s Oil Pressure Switches constantly monitor to ensure the safe operation of the vehicle and prevent damage to the engine.
FEATURES
- Quick and Accurate Data
- Tested in house at state of the art UK facility
- Fast Switching
CAUSES OF FAILURE
- Corroded Contact
- Leaking Seal or Diaphragm
SYMPTOMS
- Dashboard Warning Light
ALSO KNOWN AS
- OPS
WARRANTY
- Lifetime Warranty
CROSS REFERENCES
- DACIA: 8200671272 | GENERAL MOTORS: 4431212, 4433805, 93198166 | MERCEDES-BENZ: A6079051400 | NISSAN: 2524000Q0A, 2524000QAH | OPEL: 4433805 | RENAULT: 8200359627, 8200670467 | SUZUKI: 3782067J00000 | VAUXHALL: 4431212, 4433805, 93198166
TECHNICAL DATA
| Connector Shape | Oval |
| Country of Origin | Spain |
| Edge | EDG51139 |
| Height (mm) | 16 |
| Housing Colour | White |
| Length (mm) | 52 |
| Net Weight (kg) | 0.034 |
| No of poles | 1 |
| Spanner Size | 21 |
| Switch Point (psi) | 9.0 |
| Switch Pressure (bar) | 0.6 |
| Technical Information | Circuit N.C. |
| Thread Size | M14 x 1.5 |
| Weight (kg) | 0.04 |
| Width (mm) | 17 |
