Description

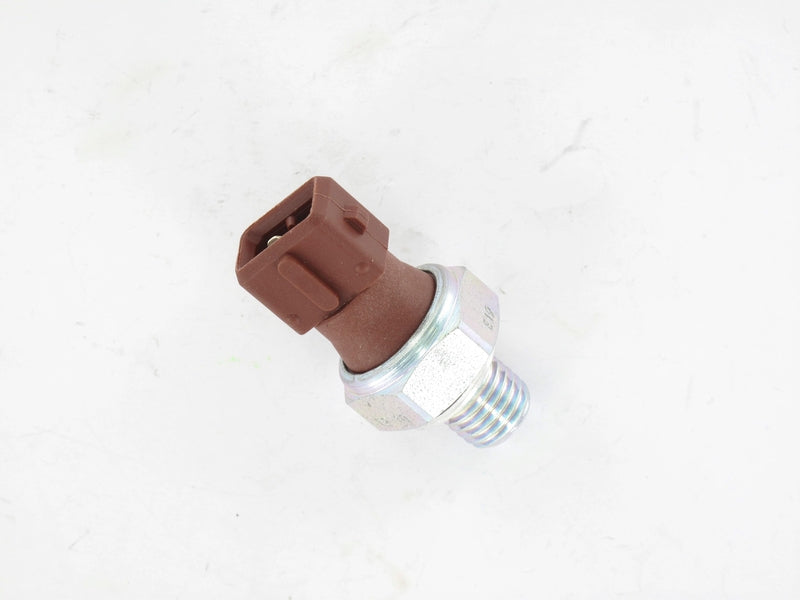

Providing unmatched dependability, Intermotor's range of Oil Pressure Sensors consistently provide precise feedback and resistance to harsh operating conditions.
Built to measure pressure of oil in the engine, Lucas’s Oil Pressure Switches constantly monitor to ensure the safe operation of the vehicle and prevent damage to the engine.
FEATURES
- Quick and Accurate Data
- Tested in house at state of the art UK facility
- Fast Switching
CAUSES OF FAILURE
- Corroded Contact
- Leaking Seal or Diaphragm
SYMPTOMS
- Dashboard Warning Light
ALSO KNOWN AS
- OPS
WARRANTY
- Lifetime Warranty
CROSS REFERENCES
- BMW: 7568480, 7620512, 7568480, 7620512, 8611273, 8611273 | GENERAL MOTORS: 1252552, 1252569, 93175295 | HONDA: 37240P5TG01 | LAND ROVER: 1730160, LR005792, LR058003, NUC000040, NUC100280L, STC2252 | MINI: 12617568480, 12617620512, 12618611273, 12612367061, 12617620512, 12618611273 | OPEL: 1252552, 1252569, 1252579, 1252552, 1252579, 93175295 | ROVER: NUC100280, NUC100350 | TOYOTA: 83530WA011, 83530WA011 | VAUXHALL: 1252552, 1252569, 93175295
TECHNICAL DATA
| Connector Shape | Angular |
| Country of Origin | Spain |
| Edge | EDG50721 |
| Height (mm) | 22 |
| Housing Colour | Brown |
| Length (mm) | 37 |
| Net Weight (kg) | 0.032 |
| No of poles | 1 |
| Notes | Parallel Thread |
| Spanner Size | 24 |
| Switch Point (psi) | 3.5-6.5 |
| Technical Information | Circuit N.C. |
| Thread Size | M12 x 1.5 |
| Weight (kg) | 0.038 |
| Width (mm) | 56 |
