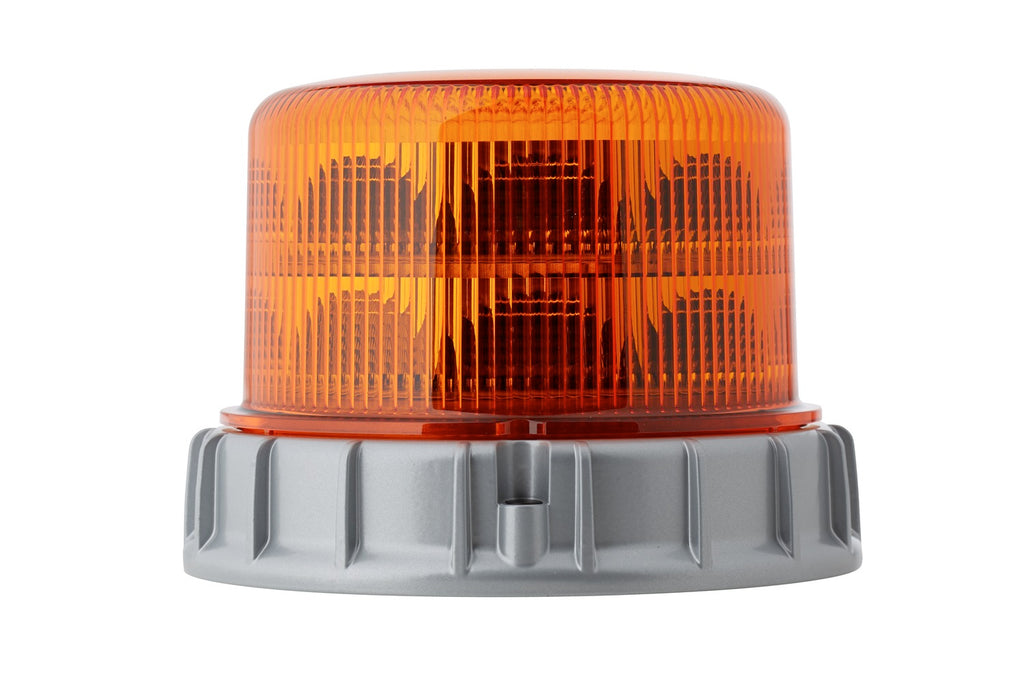

HELLA 2RL 014 979-001 LED-Rotating Beacon - RotaLED Compact - 12/24V - Amber

Item Attributes: Mounting Type: BoltedLight Design: LEDLamp Type: LEDVoltage: 12 V / 24 VHeight: 118 mmOuter Diameter 1: 165 mmLight Function: With rotating warning signal / with indicator (LED)Light colour: AmberNumber of LEDs: 16Plug: Blade TerminalProt.type (IP Code): IP6K7 / IP6K9KRegistration Type: SAE / ADR/GGVSFulfils ECE norm.: R65 / R10fulfils test standard: RCMLens Colour: yellow (amber)Housing Colour: BlackRotating beacon RPM: 123 1/minPower consumption: 7 WHousing material: ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)Operating temperature from: -40 °COperating temperature to: +60 °CWeight: 390 gCable: 150 mmDiffusing Lens Material: PC (Polycarbonate)Reverse polarity protection: YesQuantity: 1Supplementary Article/Info 2: Electromagnetic Compatibility (EMC)Assembly by qualified personnel required!

The RotaLED Compact beacon is available as a flashing or rotating version. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 30 V and has an impact-resistant polycarbonate light cover. The height is approx. 118 mm (F) to 164 mm (FL) depending on the design. The RotaLED Compact beacon meets the requirements of IP 67 and IP X9K and is therefore dust-tight and resistant to high-pressure cleaners. Even short-term immersion up to 1 metre under water is possible. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots. The RotaLED Compact is the successor to the halogen beacon series Rotafix Rotaflex and Rota Compact and makes a 1:1 exchange to LED technology possible.

OE references: DOLL 7293853; DOOSAN 301005-02312; PUTZMEISTER 758241

Rotating Beacon;HELLA;RotaLED Compact;2RL 014 979-001;165mm;7W;SAE;150mm;12V;Yes;ECE-R65;+60°C;24V;Black;LED;With flashing warning signal;ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate);1231/min;Electromagnetic Compatibility (EMC);ECE-R10;with indicator (LED);1;16;Yellow;390g;Flachstecker;ADR/ GGVS Checked;Bolted;IP6K7;IP6K9K;Yellow;PC (Polycarbonate);118mm;-40°C;
