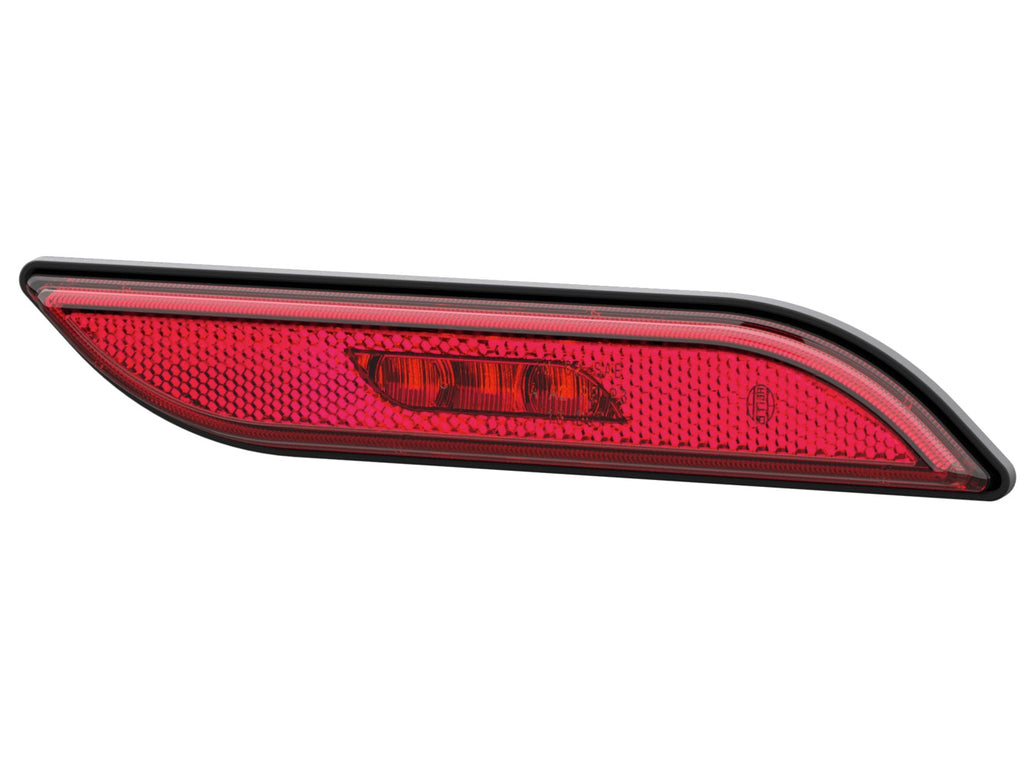

HELLA 2PS 013 303-241 Side Marker Light - Shapeline Tech - LED - 12/24V

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: for horizontal fastening
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Fitting Position: left / right
Height: 16 mm
Width: 34 mm
Length: 168 mm
Light Function: with reflector / with side marker light (LED)
Light functions: 2
Plug: open cable ends
Prot.type (IP Code): IP6K7 / IPX9K
Registration Type: SAE
Number of LEDs: 3
LED colour: Yellow
Cable: 500 mm
Housing Type: Rubber Housing
Housing Colour: Black
Lens Colour: Red
Power consumption: 1.3 W / 0.55 W
Number of pins: 2 -pin connector
Quantity: 1
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front side or rear of the vehicle any vehicle series - whether small or large - can be given an individual and above all consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

Side Marker Light;HELLA;Shapeline Tech;12V;155mm;Left;for horizontal fastening;3;LED;7439-92-1; Lead;34mm;with side marker light (LED);Bolted;24V;2;with reflector;LED;Red;168mm;SAE;500mm;Rubber Housing;Right;2conductor;
