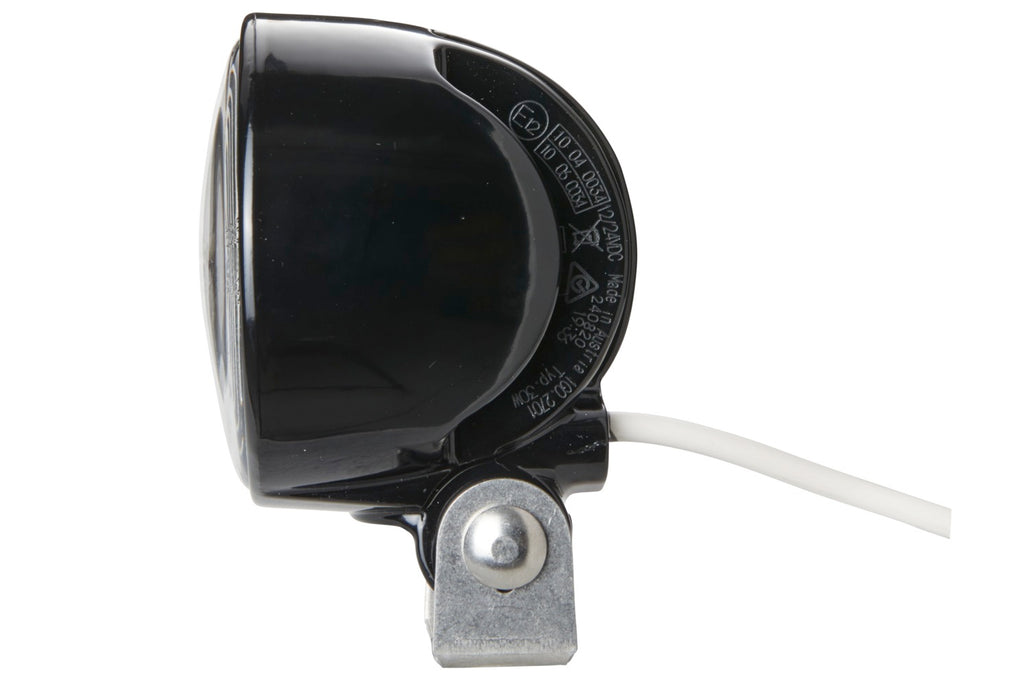

HELLA 1G0 996 576-001 LED-Worklight - Modul 70 Gen. 3.2 - 24/12V

Item Attributes: Mounting Type: mounting / BoltedFastening Type: Swivelling Mounting BracketLight Design: LEDLamp Type: LEDVoltage: 12 V / 24 VHeight: 110 mmWidth: 83 mmDepth: 74 mmLight Distribution: Long-range illuminationFulfils ECE norm.: R10fulfils test standard: RCMPlug: open cable endsProt.type (IP Code): IP6K7 / IP6K9KLuminous Flux: 1800 lmColour Temperature: 6500 KNumber of LEDs: 3Power consumption: 20 WCable: 2000 mmHousing Type: Aluminium HousingHousing Colour: BlackDiffusing Lens Type: Clear diffusing lensAssembly by qualified personnel required!

With the Module 70 LED Generation 3.2 HELLA brings a light upgrade of the established Module 70 LED Generation 3. Equipped with 3 high-power multichip LEDs the module produces 70 LED Generation 3.2 now 1800 measured lumens with an energy consumption of only 20 watts. (Comparison: Generation 3 only produced 800 lumens). The worklight's black housing is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs. In addition to the standard cable version the compact Module 70 LED Generation 3.2 also comes with an integrated DEUTSCH plug for the first time. The electronics of the worklight are multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. In addition temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. Despite its compact design this is a very robust worklight for numerous applications. The light of the LED worklight is very similar to daylight. This has the effect of distinguishing colours more clearly in the dark making it much easier for the human eye to perceive the senses and preventing fatigue. The Module 70 LED Generation 3.2 is also available as a reversing spotlight.

Worklight;HELLA;Modul 70 Gen. 3.2;IP 6K8;open cable ends;1G0 996 576-001;LED;IP 6K9K;24V;12V;Bracket mounting;20W;2000mm;70mm;83mm;110mm;1800lm;6500K;74mm;mounting;Vertical;Long-range illumination;3;Electromagnetic Compatibility (EMC);Black;Aluminium Housing;
