Carlyle Hand Tools 19 Pc Engine Locking Tool - Belt Driven PSA - C4820

FEATURES

• Citroen, Fiat, Lancia, Mitsubishi, Peugeot, Suzuki, Toyota, Vauxhall/Opel
• Citroen: Berlingo/Berlingo First I/II, C-Crosser, C1/C2, C3 III, C3 Pluriel, C4, C4 II, C4 Picasso/ Grand Picasso/ III, C4 Space Tourer/ Grand Spac Tourer, C5/ C5 II, C5 III, C5 Aircross, C6, C8, Dispatch/Jumpy I/ II/ III/ IV, DS3/ DS3 Cabrio, DS4/ DS5, Relay/ Jumper/ II/ III (14-), Space Tourer, Synergie Evasion, Xsara II, Xsara Picasso, Fiat: Ducato, Scudo, Ulysse, Lancia: Phedra, Zeta, Mitsubishi: ASX, Outlander (07-13), Peugeot: 1007 / 3008/ 3008 (09-16), 107/ 206/ 206+/ 207, 306/ 307/ 307 CC, 308/ 308 CC/ 308 (13-), 4007/ 5008, 406/ 406 Coupe, 407/ 407 Coupe, 508/ 607/ 806/ 807, Boxer III (14-), Boxer/ Boxer II, Expert I/ II/ III/ IV, Partner/ Partner Origin/ Rnach I/ II, RCZ, Suzuki: Grand Vitara (98-06), Toyota: Proace, Vauxhall/Opel: Combo-E Life (X19)(18-), Crossland X (P17)(17-), Grandland X (A18)(17-)
• DV4TD (8HT/8HW/8HX/8HZ), DV4TD (8HT/8HX/8HZ), DV4TED4 (8HV/8HX/8HY), D15, D15DT/LQJ (DV5RD), D15DT/LQJ (YHY/DV5RD), D15DTH/LQP (DV5RC), D15DTH/LQP (YHZ/DV5RC), D15DTL/LQJ (YHW/DV5RE), DV5RC, DV5RC (YHX), DV5RD, DV5RE, 9HD, 9HD (DV6C), 9HD (DV6CTED), 9HN, DV6ATED4 (9HW/9HX), DV6CTED (9HD), DV6ETED (9HN), DV6TED4 (9HY/9HZ), 4WZ-FHV, 4WZ-FTV, AHH (DW10FC), AHJ (DW10FE), AHK (DW10FE), AHS (DW10FD), DW10 (RHK/RHM/RHR/RHT/RHW/RHZ), DW10ATED (RHS/RHZ), DW10ATED/L3 (RHS/RHZ), DW10ATED4 (RHM/RHW), DW10ATED4/L4 (RHM/RHT), DW10ATED4/L4 (RHT), DW10BTED (RHX), DW10BTED/L3 (RHX), DW10BTED4 (RHF/RHL/RHR), DW10C (RHD/RHH), DW10CD (AHZ), DW10CE (AHY), DW10CTED4 (RHC/RHD/RHE/RHH), DW10DTED4 (RHB), DW10FC (AHH), DW10FC (AHT), DW10FC (AHW), DW10FC (EHZ), DW10FCC (EHY), DW10FCd (AHX), DW10FD (AHR/AHS/AHV/AHX), DW10FD (AHR/AHV/AHX), DW10FDCU (EHZ), DW10FE (AHJ), DW10FE (AHK), DW10FUC (AHP), DW10FUD (AHN), DW10FUE (AHM), DW10JATED4/ (RHW), DW10TD (RHY), DW10UTD (RHV), DW10UTED4 (RHG/RHK), DW10UTED4 (RHK), DW12BTED4 ((4HP/4HR/4HS/4HT), DW12CTED4 (4HL), DW12MTED4 (4HK/4HN), DW12TED4 (4HX), DW12TED4/L4 (4HW), DW12UTED (4HY), EHW (DW10Fcd), EHY (DW10FCC), EHZ (DW10FC), EHZ (DW10FDCU), RHK, RHK (DW10UTED4), RHM, RHV, RHW, RHZ, RHZ (DW10ATED), 4HA (DW12RUE), 4HB (DW12RUD), 4HC (DW12RUC), 4HH (DW12RUC), 4HJ (DW12RUE), 4HK, 4HK (DW12RUE), 4HN, 4HP, 4HT, DW12 (4HP/4HR/4HS/4HT/4HW), DW12ATED (4HZ), DW12ATED4/L4 (4HW), DW12BTED4 (4HS/4HT), DW12MTED4 (4HN), DW12RUC (4HC), DW12RUC (4HH), DW12RUD (4HB), DW12RUE (4HA), DW12RUE (4HJ), DW12RUE (4HK), DW12UTED (4HY)
• Equivalent to OE Reference: 0132AJ1, 0132AK, 0153AE, 0153AK, 0188-AD, 0188-AH, 0188-AH, 0188-J1, 0188-J2, 0188-K, 0188-M, 0188-P, 0188-Q2, 0188-X, 0189-K, 0193-A, 09910-26530, 09910-26540, 09919-56550, 09944-36011, 4533-TAD, EN-52137, EN-52138, KM-6349, O

INFO

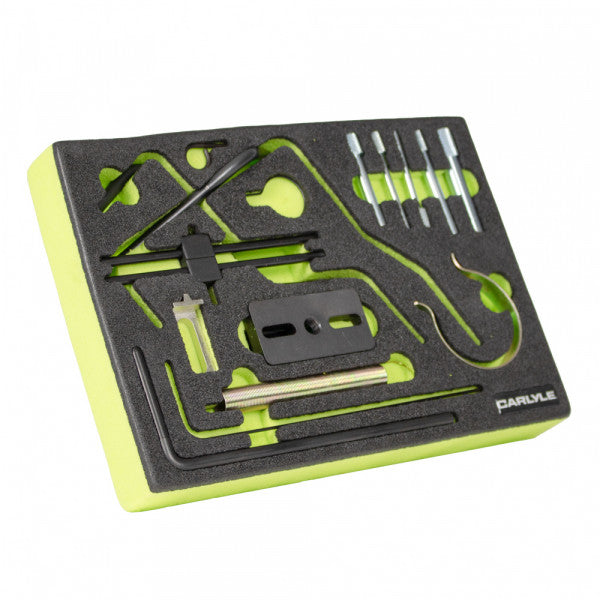

• C4820 contains the tools required for Setting and Locking the engine on PSA Hdi common rail diesel engines to allow timing belt replacement.
