Description

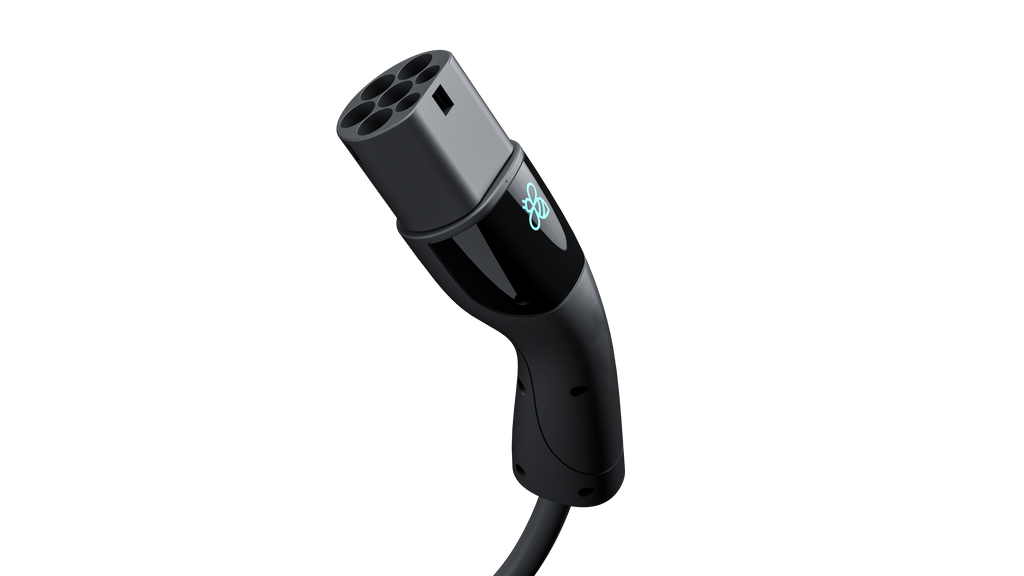

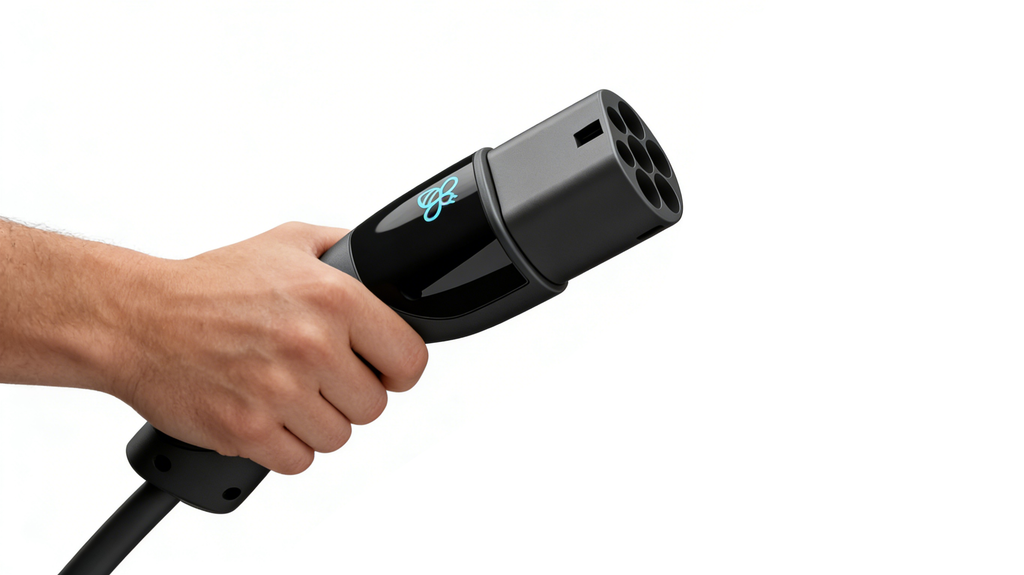

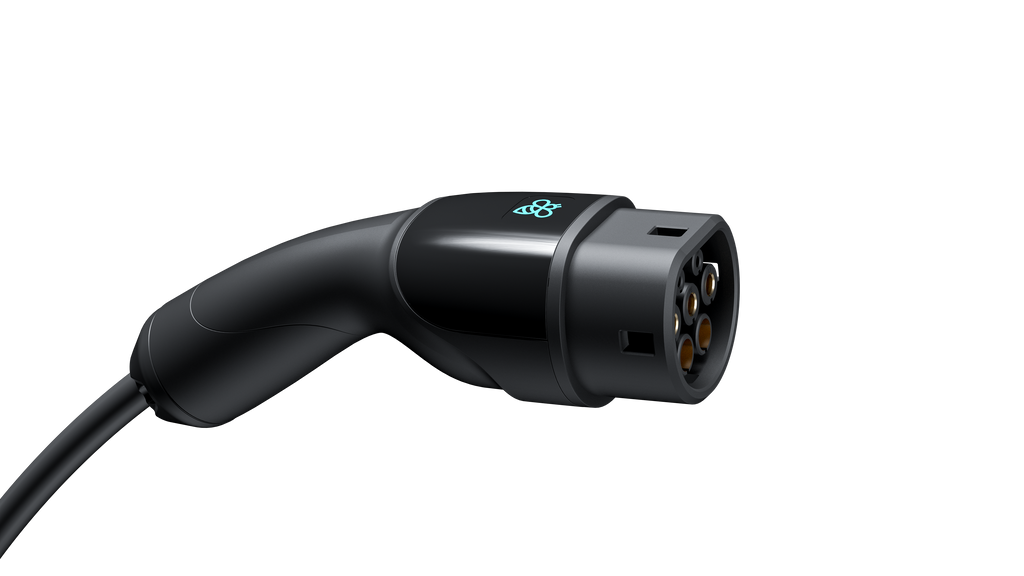

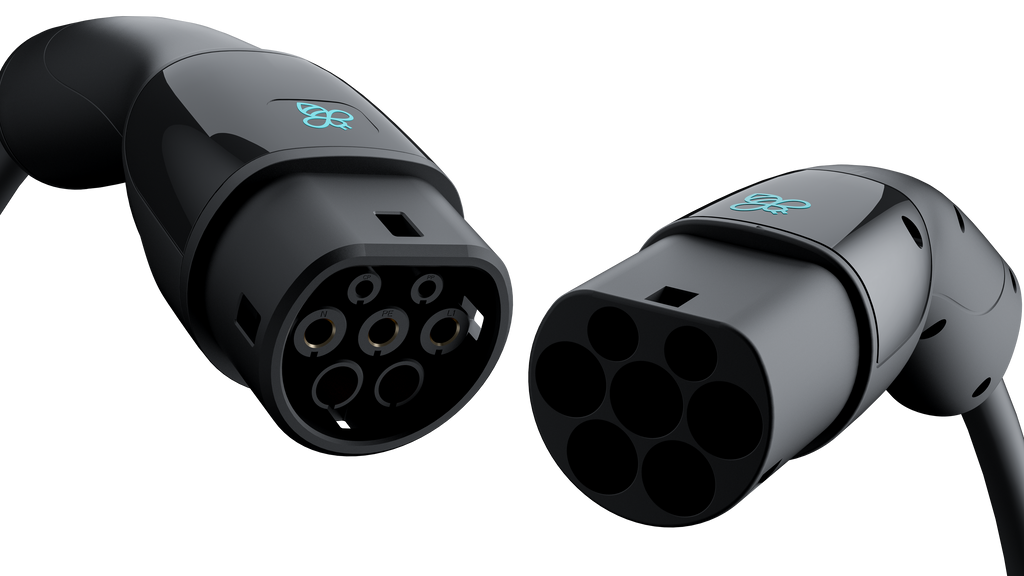

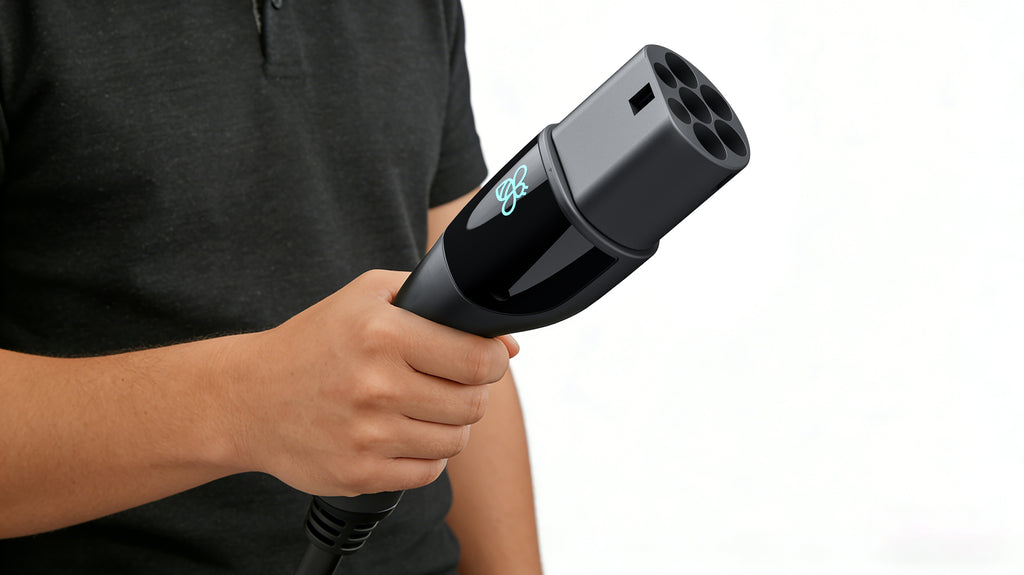

Compact, reliable, and built for everyday use, the Bumblebee EV 5m Type 2 to Type 2 charging cable delivers consistent 7kW charging at 32A single phase.
Ideal for home setups and standard parking spaces, this shorter length keeps things neat and easy to store without sacrificing performance. Manufactured using durable, weather-resistant materials, it ensures safe and efficient charging in all conditions. A practical solution for EV drivers who want dependable performance with minimal fuss.
GENERAL
| Cable Specifications | 5*6 mm²+1*0.5 mm² |
| Cable O.D. | 16±0.5 mm |
| Cable Overall Length | Available in 5.0 m, 7.5 m and 10.0 m |
| Power Options | Available in 7.4 kW, 11 kW or 22 kW |
| Operating Temperature | -30 °C to +50 °C |
| Insulation Resistance | 500 MΩ (500V DC) |
| Contact Resistance | 5 mΩ Max. without wire |
| Insertion force | 100 N Max |
| Standard | EN 62196-2:201 |
PROTECTION
| Ingress Protection | IP54 (with protective cap) |
CHARGING
| Connector on vehicle side | Type 2 (IEC 62196-2) |
| Connector on infrastructure side | Type 2 Socket (IEC 62196-2) Electronic lock with permanent lock option |
| Rated Current | 6 A 1 phase to 32 A 3 phase |
| Maximum Output Current | 32 A |
| Rated Voltage | 480 V |
| Rated Frequency | 50 Hz |
| Withstanding Voltage | 2500V AC (50/60 Hz@1 min) between L.N.PE |
