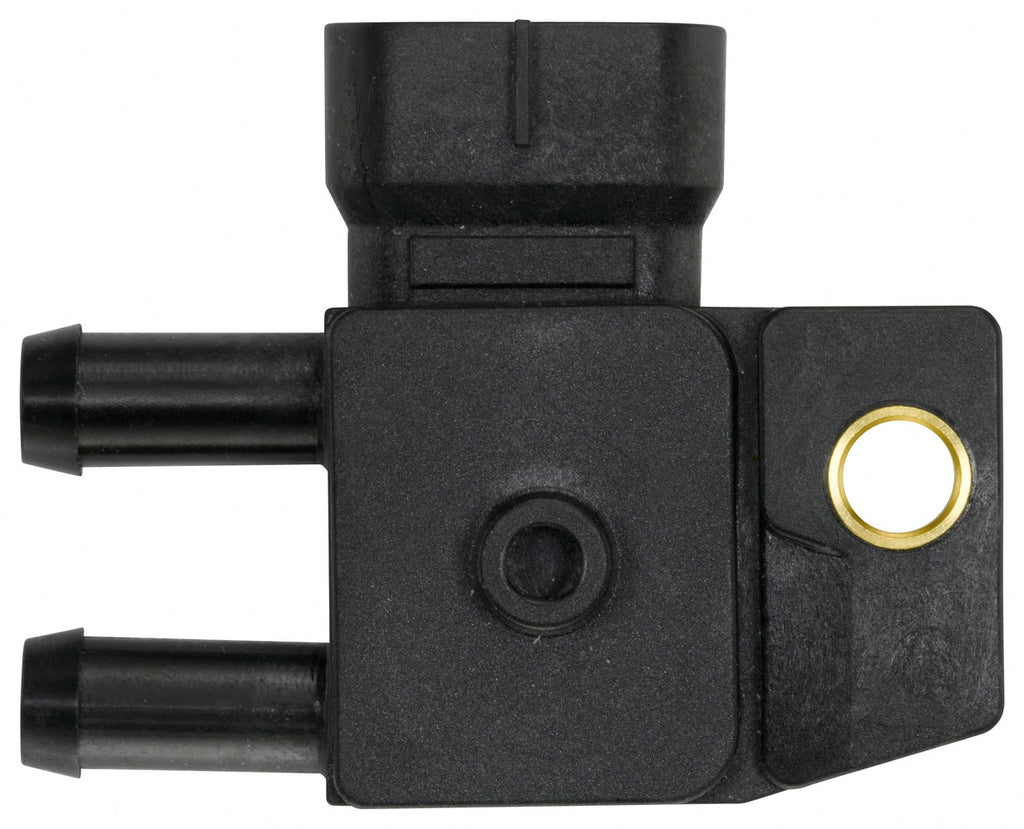

HELLA 6PP 013 112-011 Sensor, intake manifold pressure - 4-pin connector

Item Attributes: Pressure from: 30.8 kPaPressure to: 369.2 kPaMeasuring Range from: 0.250 VMeasuring Range to: 4.750 VNumber of pins: 4 -pin connectorAssembly by qualified personnel required!

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing which ensures a long service life for its products. On the other hand in the continuous development and expansion of the product range.

OE references: GENERAL MOTORS 97381191; OPEL 62 38 678; OPEL 97381191; VAUXHALL 62 38 678; VAUXHALL 97381191

Sensor intake manifold pressure;HELLA;4;3692kPa;0250V;308kPa;4750V;
