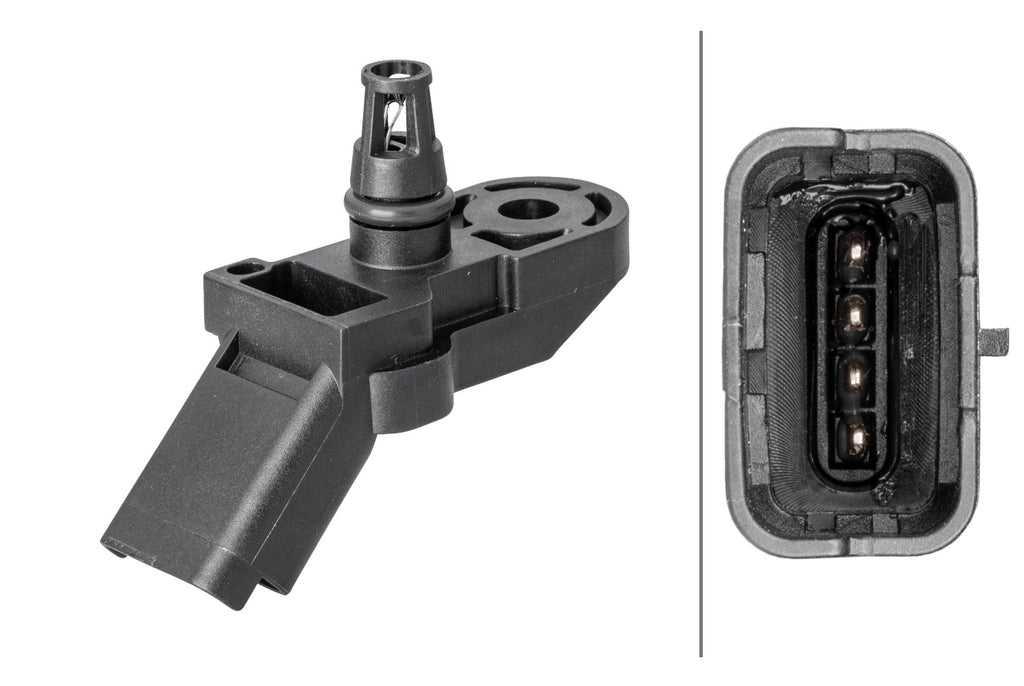

HELLA 6PP 009 400-341 Sensor, intake manifold pressure - 12V - 4-pin connector

Item Attributes: from: 17000 Pato: 104500 PaVoltage: 12 VResistor: 2080 OhmNumber of pins: 4 -pin connectorSensor Type: NTC SensorSVHC: 7439-92-1; LeadAssembly by qualified personnel required!

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing which ensures a long service life for its products. On the other hand in the continuous development and expansion of the product range.

OE references: FERRARI 46451792; FERRARI 55221402; FERRARI 71714218; FERRARI 71718233; FERRARI 71718678; FERRARI 71728656; FIAT 46451792; FIAT 55221402; FIAT 71718233; FIAT 71718678; FIAT 71728656; LANCIA 46451792; LANCIA 55221402; LANCIA 71714218; LANCIA 71718233; LANCIA 71718678; LANCIA 71728656

Sensor intake manifold pressure;HELLA;4;104500Pa;7439-92-1; Lead;12V;NTC Sensor;17000Pa;2080Ohm;
