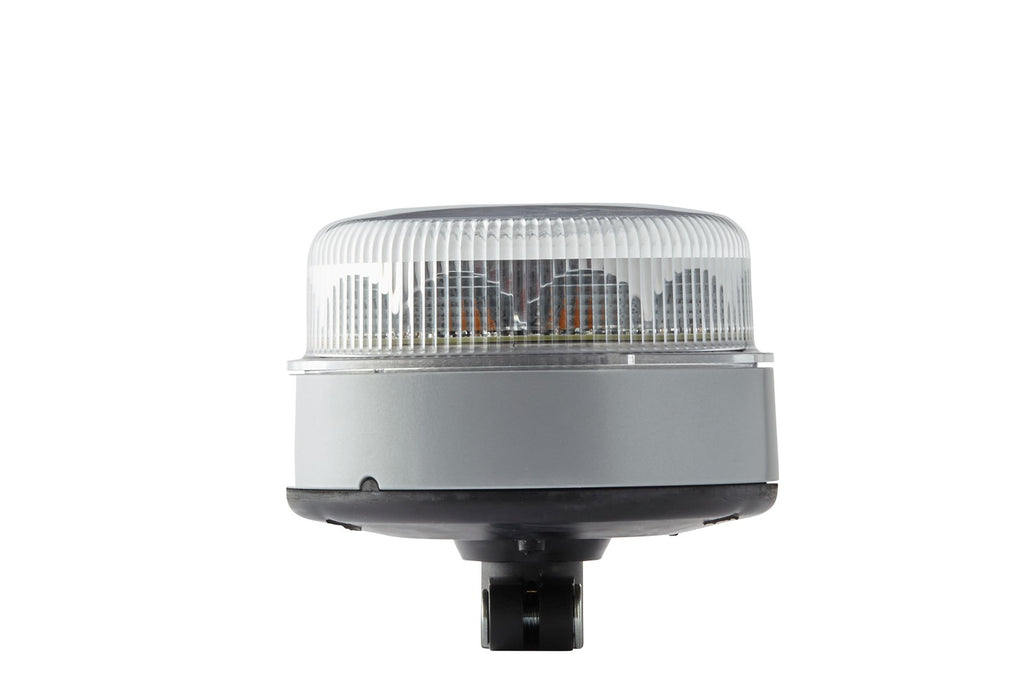

HELLA 2XD 012 984-401 LED-Strobe-type Beacon - K-LED 1.2 - 12/24V - Yellow

Item Attributes: Mounting Type: Flexible pipe socketsLight Design: LEDLamp Type: LEDVoltage: 24 V / 12 VHeight: 167 mmOuter Diameter 1: 169 mmLight Function: With flashing warning signalLight colour: YellowNumber of LEDs: 8Prot.type (IP Code): IP6K9K / IP6K7Registration Type: SAE / ADR/GGVSFulfils ECE norm.: R65 / R10Lens Colour: YellowHousing Colour: SilverFlash rate per minute: 122Power consumption: 22 WHousing material: AluminiumOperating temperature from: -40 °COperating temperature to: +60 °CWeight: 1097 gDiffusing Lens Material: PC (Polycarbonate)Reverse polarity protection: YesQuantity: 1Supplementary Article/Info 2: Electromagnetic Compatibility (EMC)LED colour: WhiteAssembly by qualified personnel required!

The K-LED 1.2 beacon has a larger light emission surface due to its double light system achieving a large warning effect. The signal is generated by means of an electronic concept and therefore without moving parts. The beacon can be connected at an operating voltage of 10 - 30 V. It has an impact-resistant polycarbonate light bonnet and the height is approx. 115.5 mm (F) to 196.5 mm (R) depending on the design due to the double light system. The housing of the K-LED 1.2 is passivated and then coated with powder coating which provides a high level of protection against aggressive media such as salts and alkalis. The beacon meets IP6K7 and IP6K9K requirements and is therefore dust-tight and suitable for high-pressure cleaning. Even short-term immersion up to 1 metre under water is possible. The product is fixed to the vehicle by means of screws or by means of a pipe socket adapter. A magnet version is also available on request. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

Rotating Beacon;HELLA;K-LED 1.2;122;169mm;ECE-R65;-40°C;Yellow;IP6K9K;LED;167mm;Yes;24V;Aluminium;With flashing warning signal;Electromagnetic Compatibility (EMC);IP6K7;8;Silver;SAE;1;PC (Polycarbonate);Flexible pipe sockets;2XD 012 984-401;12V;1097g;ADR/ GGVS Checked;ECE-R10;22W;+60°C;Yellow;
