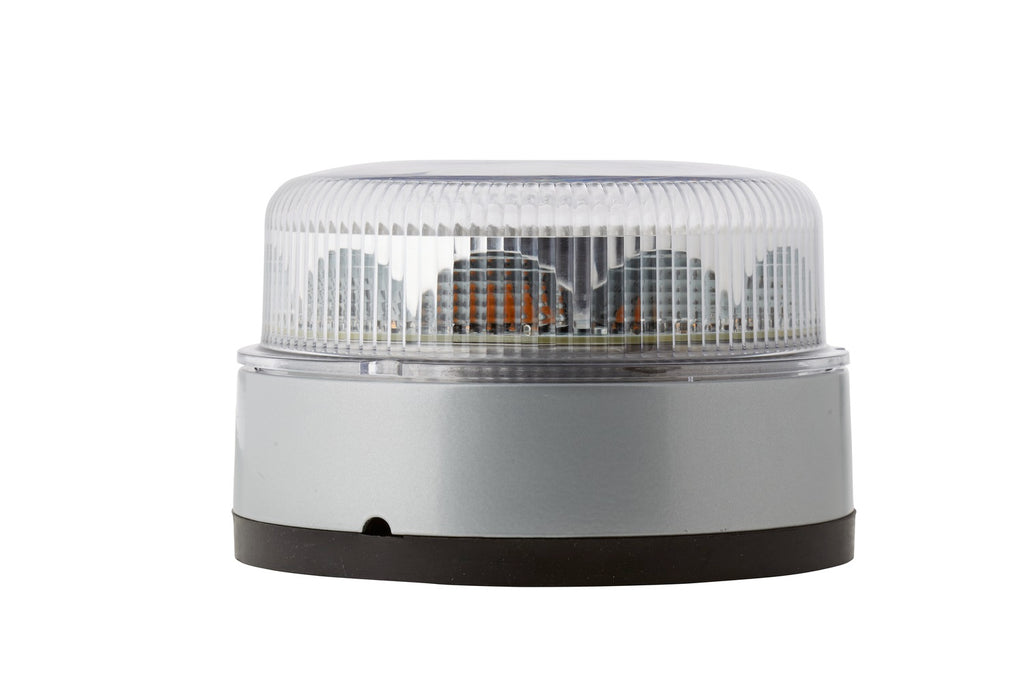

HELLA 2XD 012 984-301 LED-Strobe-type Beacon - K-LED 1.2 - 12/24V - Yellow

Item Attributes: Mounting Type: BoltedLight Design: LEDLamp Type: LEDVoltage: 12 V / 24 VHeight: 167 mmOuter Diameter 1: 165 mmLight Function: With flashing warning signalLight colour: YellowNumber of LEDs: 8Plug: open cable endsProt.type (IP Code): IP6K9K / IP6K7Registration Type: ADR/GGVS / SAEFulfils ECE norm.: R65 / R10Lens Colour: YellowHousing Colour: SilverFlash rate per minute: 122Power consumption: 22 WOperating temperature from: -40 °COperating temperature to: +60 °CHousing material: AluminiumWeight: 850 gCable: 1450 mmDiffusing Lens Material: PC (Polycarbonate)Quantity: 1Supplementary Article/Info 2: Electromagnetic Compatibility (EMC)LED colour: WhiteAssembly by qualified personnel required!

The K-LED 1.2 beacon has a larger light emission surface due to its double light system achieving a large warning effect. The signal is generated by means of an electronic concept and therefore without moving parts. The beacon can be connected at an operating voltage of 10 - 30 V. It has an impact-resistant polycarbonate light bonnet and the height is approx. 115.5 mm (F) to 196.5 mm (R) depending on the design due to the double light system. The housing of the K-LED 1.2 is passivated and then coated with powder coating which provides a high level of protection against aggressive media such as salts and alkalis. The beacon meets IP6K7 and IP6K9K requirements and is therefore dust-tight and suitable for high-pressure cleaning. Even short-term immersion up to 1 metre under water is possible. The product is fixed to the vehicle by means of screws or by means of a pipe socket adapter. A magnet version is also available on request. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

OE references: AEBI 1301439-2

Rotating Beacon;HELLA;K-LED 1.2;PC (Polycarbonate);24V;Silver;Electromagnetic Compatibility (EMC);+60°C;Yellow;-40°C;22W;IP6K9K;2XD 012 984-301;8;12V;1;ECE-R65;Bolted;ADR/ GGVS Checked;LED;122;IP6K7;With flashing warning signal;Aluminium;SAE;165mm;Yellow;850g;167mm;open cable ends;ECE-R10;1450mm;
