HELLA 2XD 012 980-011 LED-Strobe-type Beacon - K-LED Blizzard - 12/24V - Yellow

Item Attributes: Mounting Type: Flexible pipe sockets / mountingLight Design: LEDLamp Type: LEDVoltage: 24 V / 12 VHeight: 132 mmOuter Diameter 1: 149 mmLight Function: With flashing warning signalLight colour: YellowNumber of LEDs: 10Prot.type (IP Code): IP6K9K / IP6K7Registration Type: SAE / ADR/GGVSFulfils ECE norm.: R10 / R65Lens Colour: Crystal clearHousing Colour: SilverFlash rate per minute: 121Power consumption: 16 WHousing material: AluminiumOperating temperature from: -40 °COperating temperature to: +60 °CWeight: 1200 gDiffusing Lens Material: PC (Polycarbonate)Reverse polarity protection: YesQuantity: 1Supplementary Article/Info 2: Electromagnetic Compatibility (EMC)LED colour: YellowAssembly by qualified personnel required!

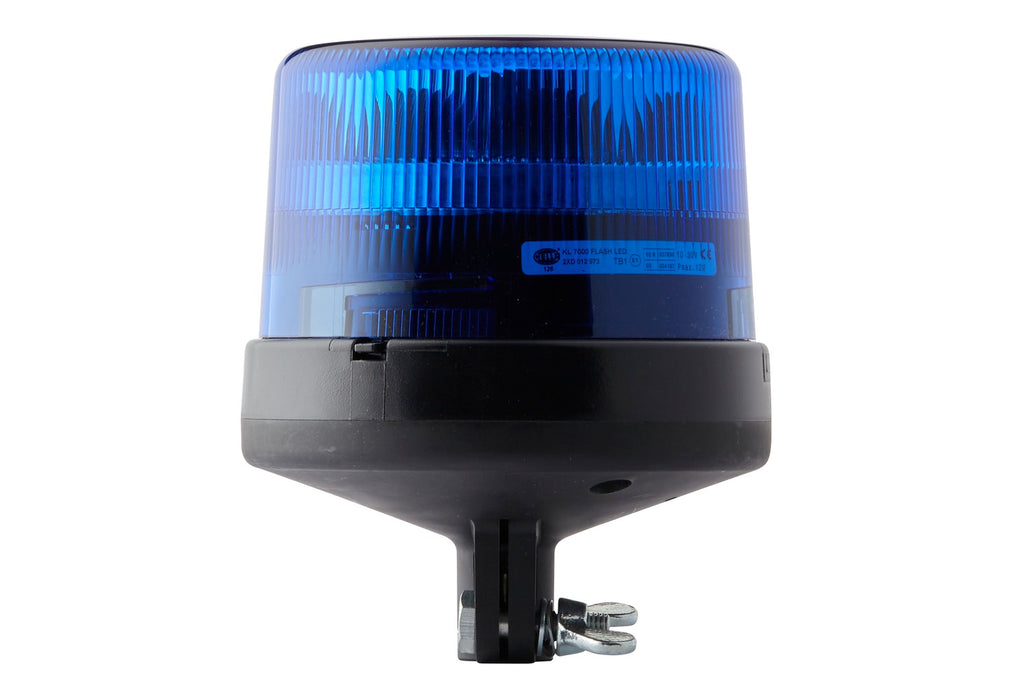

The K-LED Blizzard beacon generates an intensely perceptible double flash signal that provides an attention-grabbing 360° warning effect. The beacon can be connected to an operating voltage of 10-30 V and has an impact-resistant polycarbonate light cover. Depending on the design the height is approx. 88 mm (F) to 132 mm (FL). The housing is passivated and then coated with powder paint which provides a high level of protection against aggressive media such as salts and alkalis. The K-LED Blizzard meets the requirements of IP67 and IP9K and is therefore dust-tight as well as resistant to high-pressure cleaners. Even short-term immersion up to 1 metre under water is possible. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots. The K-LED Blizzard is the successor of the beacon series K-LED FO and makes a 1:1 exchange to the new version possible.

OE references: AEBI 1098970-9; BUCHER 7020725; BUCHER 7653-4359; DAF 154 1964; FAUN 5641464; FAUN 5644997; KEMPF 134289; KRAMER 1000443683; LANGENDORF 1355807; SCANIA 20223024; TATRA TW30027; YANMAR 5050022300

Strobe-type Beacon;HELLA;K-LED Blizzard;Yes;121;10;SAE;-40°C;Flexible pipe sockets;Crystal clear;IP6K9K;ECE-R10;24V;149mm;Yellow;2XD 012 980-011;1;Aluminium;+60°C;PC (Polycarbonate);LED;Electromagnetic Compatibility (EMC);ADR/ GGVS Checked;Silver;IP6K7;10W;With flashing warning signal;12V;ECE-R65;1200g;132mm;
