HELLA 2XD 011 557-101 LED-Strobe-type Beacon - K-LED 2.0 F - 12/24V - Amber

Item Attributes: Mounting Type: mounting / Screw ConnectionLight Design: LEDLamp Type: LEDVoltage: 12 V / 24 VOuter Diameter 1: 169 mmHeight: 88 mmLight Function: With flashing warning signalLight colour: AmberNumber of LEDs: 20Plug: open cable endsProt.type (IP Code): IP6K9K / IP6K7Registration Type: ADR/GGVS / SAEFulfils ECE norm.: R65 / R10fulfils test standard: RCMSupplementary Article/Info 2: Electromagnetic Compatibility (EMC)Lens Colour: yellow (amber)Housing Colour: SilverFlash rate per minute: 122Power consumption: 30 WHousing material: AluminiumOperating temperature from: -40 °COperating temperature to: +60 °CWeight: 843 gCable: 1450 mmDiffusing Lens Material: PC (Polycarbonate)Quantity: 1Assembly by qualified personnel required!

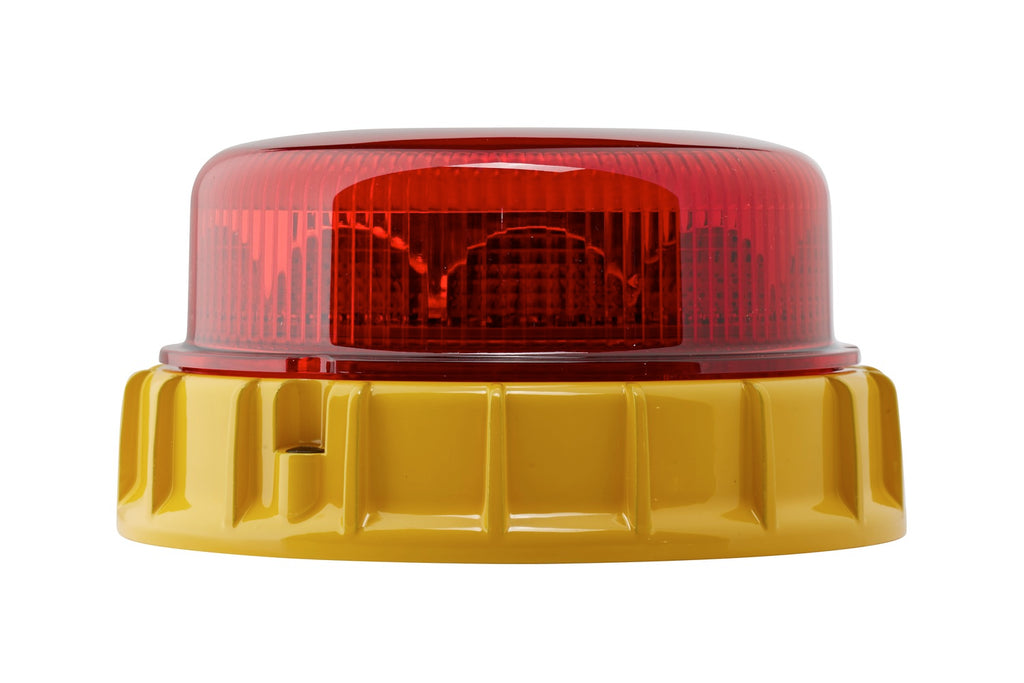

The K-LED 2.0 beacon provides both a rotating and a flashing warning signal in one product. The signal is generated by means of an electronic concept and thus without moving parts and offers 16 different flash sequences. Thanks to the integrated "day/night mode" the brightness is adjusted to the ambient light by means of a sensor. This ensures increased visibility during the day and the avoidance of glare at night. The beacon can be connected to an operating voltage of 10 - 32 V. It is also very flat and has an impact-resistant polycarbonate light bonnet that protects against shocks. The height of the K-LED 2.0 is approx. 87.6 mm (F) to 160.6 mm (R) depending on the design. It meets the requirements of IP67 and is therefore dustproof and can be immersed in water for short periods. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

OE references: AEBI 1265177-5; ATLAS COPCO 6174691; BUCHER 1009794; DAF 1545526; FAUN 5643-005; GOLDHOFER 121418; HAMM 2604818; IVECO 500051177; LIEBHERR 1 087 836 3; MERCEDES-BENZ 956 825 00 02; MERCEDES-BENZ A 956 825 00 02; PAUS 558730; ROSENBAUER 869111; SCANIA 2 286 673; SOMMER 2800781005; SPIERINGS 1069745; TEREX 6174691

Strobe-type Beacon;HELLA;K-LED 2.0;ECE-R65;30W;ECE-R10;IP6K9K;Bolted;2XD 011 557-101;Silver;Electromagnetic Compatibility (EMC);20;mounting;SAE;1;PC (Polycarbonate);88mm;Yellow;12V;1221/min;843g;ADR/ GGVS Checked;Aluminium;With flashing warning signal;24V;122;IP6K7;LED;Yellow;169mm;-40°C;open cable ends;+60°C;1450mm;
