HELLA 2VP 340 970-031 Rearlight - LED - 24V

Item Attributes: Mounting Type: mountingFitting Position: leftLength: 586 mmHeight: 180 mmWidth: 86 mmWeight: 1900 gSupplementary Article/Info 2: without ballast / with indicator failure control / for trailer / Electromagnetic Compatibility (EMC) / with plugLight Design: LEDRegistration Type: ECE / ADR/GGVSVoltage: 24 VTemperature range from: -40 °CTemperature range to: 60 °CLight functions: 7Fastening Type: for horizontal fasteningShape: rectangularHousing Colour: BlackHousing material: ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate) / PC (Polycarbonate)Lamp Type: LEDLight Function: with stop light (LED) / with reflector (triangular) / with taillight (LED) / with marker lamp (LED) / with reverse light (LED) / Without Wiping Effect / with indicator (LED) / with rear fog light (LED)Thread Size: M8 x 30Number of connectors: 5Number of pins: 7 -pin connector / 2 -pin connectorConnector type: Central 7 poles-DIN / AMP-supersealProt.type (IP Code): IP6K9Kpaired article number: 2VP 340 970-041Quantity Unit: PieceQuantity: 1Assembly by qualified personnel required!

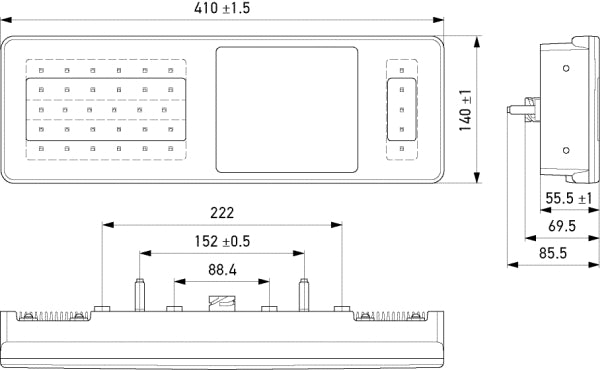

The full-LED combination rearlight for 24 V trucks and trailers impresses at first glance with its innovative design. Particularly striking is the patented LED light curtain with an area of 144 cm² for the tail light and the rear reflector behind it as well as the dynamic flashing light. Due to the large light area optimum visibility of the vehicle is ensured. This ensures a high level of safety. The combination rearlight is also extremely robust. The lens is bonded to the housing the two-colour outer lens made of polycarbonate (PC) is impact-resistant. With a size of 410 x 140 mm and an installation depth of only 55.5 mm it is also extremely compact. The electronics also meet the highest requirements. The high-power LEDs have a long service life and low power consumption. There are also versions of the light where the control for flashing side marker lights and the load simulation for brake and indicator lights are integrated into the system. This ensures a high level of compatibility. Another plus point of the combination rearlight is its future viability. It has a mechanical interface for sensors so that for example ultrasonic sensors can be connected on both sides.

Combination Rearlight;HELLA;Electromagnetic Compatibility (EMC);586mm;with brake light (LED);with reflex reflector (triangular);without ballast;for horizontal fastening;Left;5;86mm;with taillight (LED);1;LED;2VP 340 970-041;IP6K9K;with indicator failure control;Central 7 poles-DIN;24V;for trailer;60°C;with marker lamp (LED);with reverse light (LED);Rectangular;Indicator Blinks;AMP-superseal;7-pin connector;2-pin connector;M8 x 30;ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate);with indicator (LED);Piece;LED;-40°C;1900g;ECE;with plug;7;Black;ADR/ GGVS Checked;180mm;with rear fog light (LED);mounting;PC (Polycarbonate);
