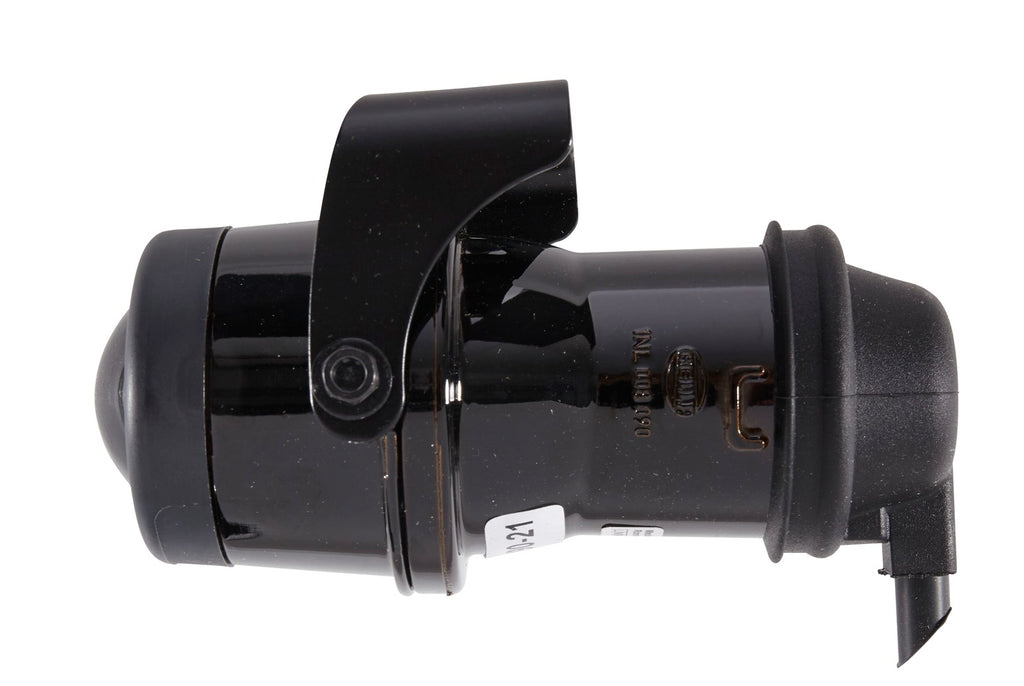

HELLA 1GM 996 134-061 Halogen-Worklight - Mega Beam - 12/24V

Item Attributes: Mounting Type: mounting / Screw ConnectionFastening Type: Four-point mountingLight Design: HalogenLamp Type: H3Voltage: 24 V / 12 VHeight: 170 mmWidth: 110 mmDepth: 103 mmLight Distribution: Off-road LightingRegistration Type: ADR/GGVSPlug: AMPProt.type (IP Code): IP5K9KPower consumption: 70 W / 35 WSupplementary Article/Info 2: without bulbsHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Material: Polyamid 12Diffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

The Mega Beam H3 is a halogen worklight whose aluminium reflector is based on free-form technology. Despite its compact dimensions the reflector provides excellent light output. An H3 bulb is used as the light source (not included). The worklight can be used with both 12 V and 24 V on-board voltage. The black lamp housing of these robust worklights is made of glass-fibre reinforced plastic that is resistant to acid and corrosion. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions the worklight can be used universally. The surface-mounted versions are suitable for standing and suspended mounting by turning the light insert. HeavyDuty versions with vibration damping use a patented damping system that protects the headlamp from vibrations and thus extends the service life of the bulb.

OE references: FENDT G 210.902.113.010; FENDT G931.901.110.010; FENDT G931.901.113.010; JOHN DEERE AL 119 291; JOHN DEERE AL 150 478; JOHN DEERE AL 17 4364; JOHN DEERE AZ 100 106; JOHN DEERE AZ 59 788; JOHN DEERE RE 21 9708; JOHN DEERE RE 23 3263; ROSENBAUER 865362; SPERRY NEW HOLLAND 84607497; TEREX D6341724

Worklight;HELLA;Mega Beam;IP5K9K;AMP;H3;67mm;110mm;IP5K4K;1GM 996 134-061;Cast Aluminium;Black;Synthetic Material Housing;12V;2000mm;IPX9K;103mm;without bulbs;Glass;Off-road Lighting;mounting;24V;ADR/ GGVS Checked;170mm;83 x 92mm;Halogen;Vertical;
