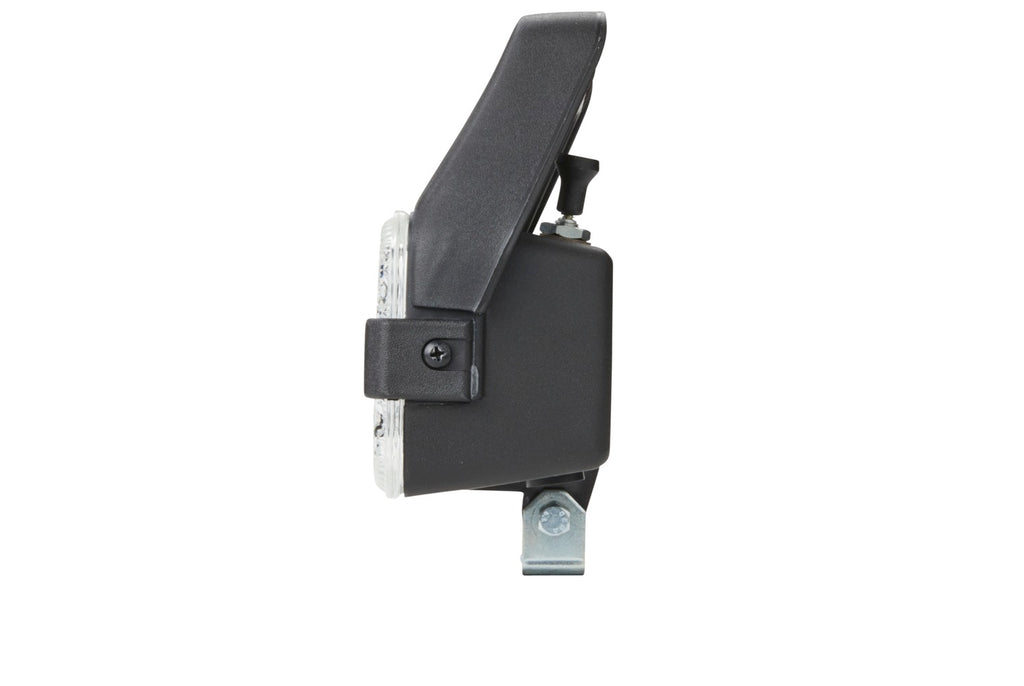

HELLA 1GD 996 193-001 LED-Worklight - Flat Beam 1000 - 24/12V

Item Attributes: Mounting Type: mounting / Screw ConnectionFastening Type: VerticalLight Design: LEDLamp Type: LEDVoltage: 24 V / 12 VHeight: 113 mmWidth: 190 mmDepth: 44 mmLight Distribution: Short distance lightingFulfils ECE norm.: R10Plug: open cable endsProt.type (IP Code): IP6K7 / IP6K9KLuminous Flux: 1100 lmColour Temperature: 6500 KPower consumption: 11 WNumber of LEDs: 60Cable: 2000 mmHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Material: PC (Polycarbonate)Diffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

The Flat Beam 1000 LED from HELLA is a highly efficient LED worklight. Due to its extremely flat design the worklight is ideal for mounting situations with little space and allows flexible mounting options e.g. on the rear wall of trucks. With a light output of 1100 lumens the Flat Beam 1000 LED provides homogeneous illumination in the near-field area of the working environment. In addition to the standard light distribution for near-field illumination the Flat Beam 1000 LED is also available as a variant with 45° near-field illumination. With this illumination variant the special optics in the lens ensure that the light is perfectly directed into the working area even when mounted vertically on the wall. The structure refracts the light downwards at a 45° angle and thus provides good illumination in the direct near-field area. This LED worklight features 60 energy-efficient LEDs that consume only 11 watts of power. To achieve the same amount of light with a 12 volt halogen headlamp 70 watts (e.g. H3) are needed. The reduced energy consumption of the vehicle minimises energy costs and protects the environment. The Flat Beam 1000 LED can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 32 volts.

OE references: ALEXANDER DENNIS 76180004; CLAAS 00172360; DAF 152 8215; FAUN 5171 783; IVECO 5032 26736; LIEBHERR 1 017 749 8; ROSENBAUER 571638; SCANIA 2 331 320; VAN HOOL 11511903

Worklight;HELLA;Flat Beam 1000;1GD 996 193-001;open cable ends;31mm;Synthetic Material Housing;24V;Short distance lighting;165 x 90mm;60;IP67;Black;12V;LED;Plastic;190mm;2000mm;Vertical;11W;IP6K9K;1000lm;Electromagnetic Compatibility (EMC);mounting;113mm;
