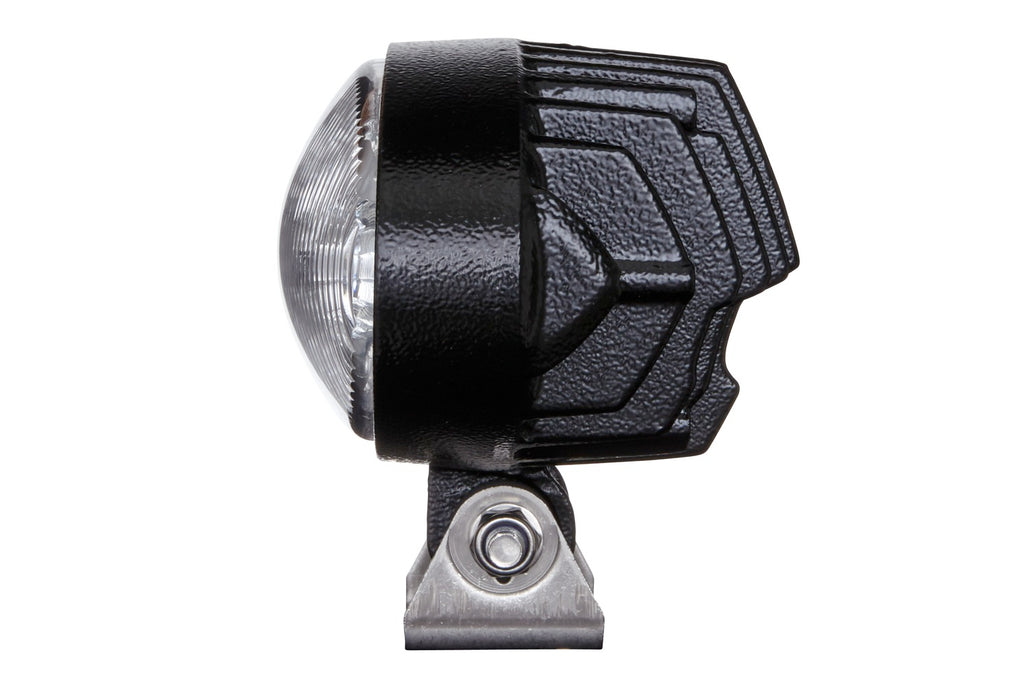

HELLA 1GB 996 386-002 LED-Worklight - Oval 90 - 24/12V

Item Attributes: Mounting Type: Bolted / mountingFastening Type: Swivelling Mounting BracketLight Design: LEDLamp Type: LEDVoltage: 24 V / 12 VHeight: 124 mmWidth: 177 mmDepth: 105 mmLight Distribution: Short distance lightingRegistration Type: ADR/GGVSFulfils ECE norm.: R10Plug: DEUTSCH plugProt.type (IP Code): IP6K9K / IP6K7Luminous Flux: 2000 lmColour Temperature: 6500 KNumber of LEDs: 10Power consumption: 28 WCable: 200 mmHousing Type: Aluminium HousingHousing Colour: BlackDiffusing Lens Material: PC (Polycarbonate)Diffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

The Oval 90 from HELLA is a compact worklight with a modern attractive design. The product range of the Oval 90 worklights includes halogen and xenon versions. The modular series is expanded with the Oval 90 LED to include efficient LED technology. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. Thanks to its powerful light output the Oval 90 LED can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 28 watts. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 90 LED can be mounted either upright (0°) or suspended (180°). The light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs making it easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklights' black housing is made of aluminium and has cooling fins ensuring the necessary heat dissipation of the 10 high-performance LEDs. In addition a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited. The integrated electronics are protected against reverse polarity and equipped with an LED fault bypass.

OE references: HAMM 2229436

Worklight;HELLA;Oval 90;24V;177mm;Suspended;105mm;1GB 996 386-002;28W;200mm;DEUTSCH plug;IP5K9K;mounting;Vertical;2000lm;Short distance lighting;12V;6500K;Black;10;ADR/ GGVS Checked;130 x 75mm;Aluminium Housing;124mm;LED;
