HELLA 1GA 998 522-407 Halogen-Worklight - Picador 8522 - 12V

Item Attributes: Mounting Type: Bolted / mountingFastening Type: Swivelling Mounting Bracket / VerticalLight Design: HalogenLamp Type: H3Voltage: 12 VHeight: 104 mmWidth: 154 mmDepth: 84 mmLight Distribution: Short distance lightingPlug: DEUTSCH plugProt.type (IP Code): IP5K4KPower consumption: 35 WCable: 130 mmHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

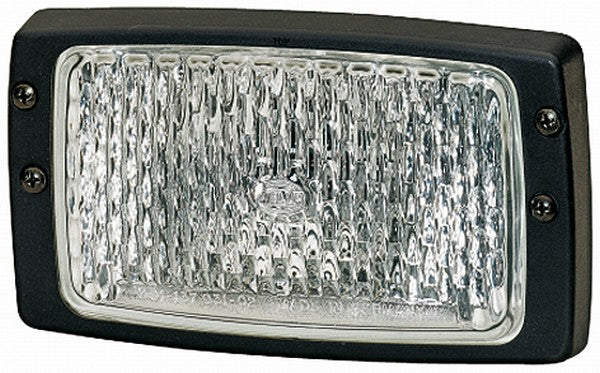

The reflector of the worklight is based on free-form technology. This in conjunction with a structured glass diffuser panel ensures intensive illumination of the working area at close range. An H3 bulb is used as the light source (not included). The worklight can be used with both 12 V and 24 V on-board voltage. The housing of this robust worklight is made of acid- and corrosion-resistant glass-fibre reinforced plastic. To protect the glass diffusing panel the housing is provided with a protruding rim at its front. Due to its compact external dimensions the Picador FF can be mounted in most places. Thanks to the lateral mounting foot the Picador FF 1GA 006 875-001 is suitable for mounting on vertical car body surfaces. The swivel joint makes it easy to align the worklight so that the working area can be optimally illuminated. A central foot connection is intended for both upright and suspended mounting (by rotating the spotlight insert) on horizontal surfaces. The cable feed-through for the power connection is via a grommet.

OE references: CLAAS 001 586 00

Worklight;HELLA;Picador;8522;Picador 8522;125 x 75mm;12V;H3;Vertical;mounting;150mm;Surface Lighting;FF;
