HELLA 1GA 996 761-101 LED-Worklight - Oval 100 Compact - 12/24V

Item Attributes: Mounting Type: mounting / BoltedFastening Type: Swivelling Mounting BracketLight Design: LEDLamp Type: LEDVoltage: 24 V / 12 VHeight: 146 mmWidth: 166 mmDepth: 83 mmLight Distribution: Short distance lightingFulfils ECE norm.: R10Plug: DEUTSCH plugProt.type (IP Code): IP6K9K / IP6K7Luminous Flux: 1850 lmColour Temperature: 6500 KNumber of LEDs: 6Power consumption: 26 WHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

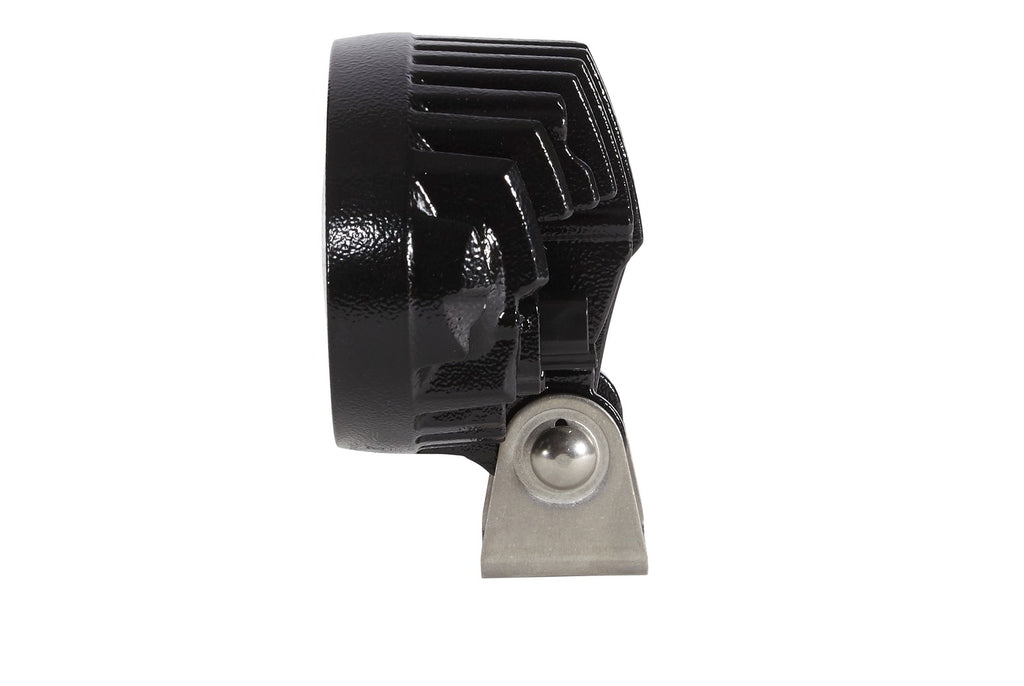

The Oval 100 LED compact is the latest version of the already extensive Oval 100 worklight series. This headlamp comes with the innovative plastic housing which offers complete corrosion resistance as well as many new mounting options. The heat-conducting plastic housing has cooling fins on the back to provide the necessary heat dissipation for the 6 high-performance LEDs. Thanks to its light output of 1850 lumens the Oval 100 LED compact is ideal for replacing old halogen worklights (H3 H9) - with a power consumption of only 26 watts. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. With 6500 Kelvin the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs making it much easier for the human eye to perceive the senses and therefore prevent rapid eye fatigue. The plastic housing is hermetically sealed and thus waterproof submersible and resistant to high-pressure cleaning. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with fluctuating operating voltages of 10.5 to 32 volts. Temperature sensors protect the worklight from overheating ensuring the long service life of the LEDs and safe working at night.

OE references: AGCO ACW1408200; AGCO ACW2237910; AGCO ACW3783570; AGCO ACW5176070; CLAAS 181 243 30; FENDT A CW3 783 570; GRIMME B94.09201; KÄSSBOHRER 7.517.175.000.0; LIEBHERR 12101892; MANITOU 52502273-A

Worklight;HELLA;Oval 100 Compact;135 x 85mm;Electromagnetic Compatibility (EMC);83mm;Suspended;166mm;IP 6K9K;Bracket mounting;143mm;26W;12V;Vertical;Anthracite grey;DEUTSCH plug;6;Aluminium Housing;24V;Body;Short distance lighting;1850lm;LED;IP 6K8;Patterned diffusing lens;6500K;1GA 996 761-101;
