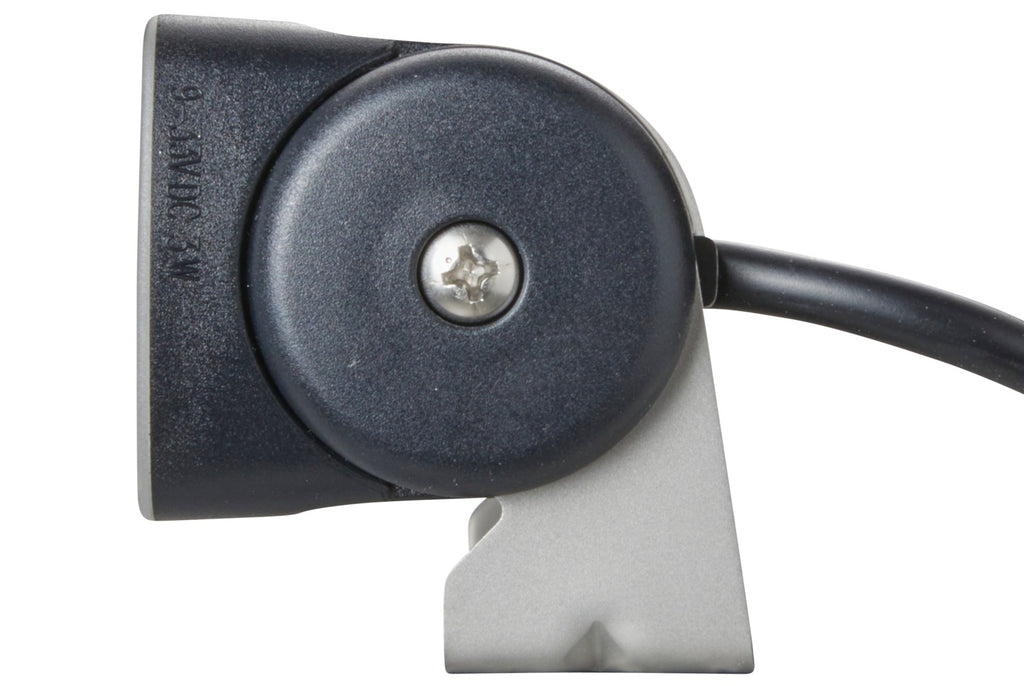

HELLA 1GA 995 193-041 LED-Worklight - Flat Beam 500 - 12/24V

Item Attributes: Mounting Type: mounting / BoltedFastening Type: Swivelling Mounting Bracket / VerticalLight Design: LEDLamp Type: LEDVoltage: 24 V / 12 VHeight: 117 mmWidth: 132 mmDepth: 52 mmLight Distribution: Short distance lightingFulfils ECE norm.: R10Plug: open cable endsProt.type (IP Code): IP6K9K / IP6K7Luminous Flux: 500 lmColour Temperature: 5700 KNumber of LEDs: 30Power consumption: 7 WCable: 2000 mmHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Material: GlassDiffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

The Flat Beam 500 LED from HELLA is a compact LED worklight with an elegant design. The housing depth of only 30 mm is ideal for mounting situations with little space. The light disk of the Flat Beam 500 LED was specially developed so that even when mounted on a flat wall the light beams are directed towards the floor at a 45° angle. This ensures good illumination of the working area even when mounted flat. This highly efficient worklight features 30 energy-efficient LEDs that consume only 7 watts of power. To achieve the same amount of light with a 12 volt halogen headlamp 55 watts (e.g. H3) are needed. The reduced energy consumption of the vehicle minimises energy costs and protects the environment. The light output of 550 lumens is sufficient to homogeneously illuminate the working environment in the near-field area. This worklight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 32 volts. The extremely flat design allows flexible mounting options e.g. on the rear wall of trucks. Thanks to its plastic housing the Flat Beam 500 LED is not susceptible to corrosion and is therefore ideal for use under the toughest conditions.

Worklight;HELLA;Flat Beam 500;with polarity protection diode;2000mm;with overheating protection;52mm;LED;12V;30;132mm;Black;LED;550lm;Synthetic Material Housing;FF;24V;IP67;117mm;Flat;7W;Vertical;500lm;with overvoltage protection;Bracket mounting;Short distance lighting;Plastic;95 x 80mm;IP6K9K;Electromagnetic Compatibility (EMC);
