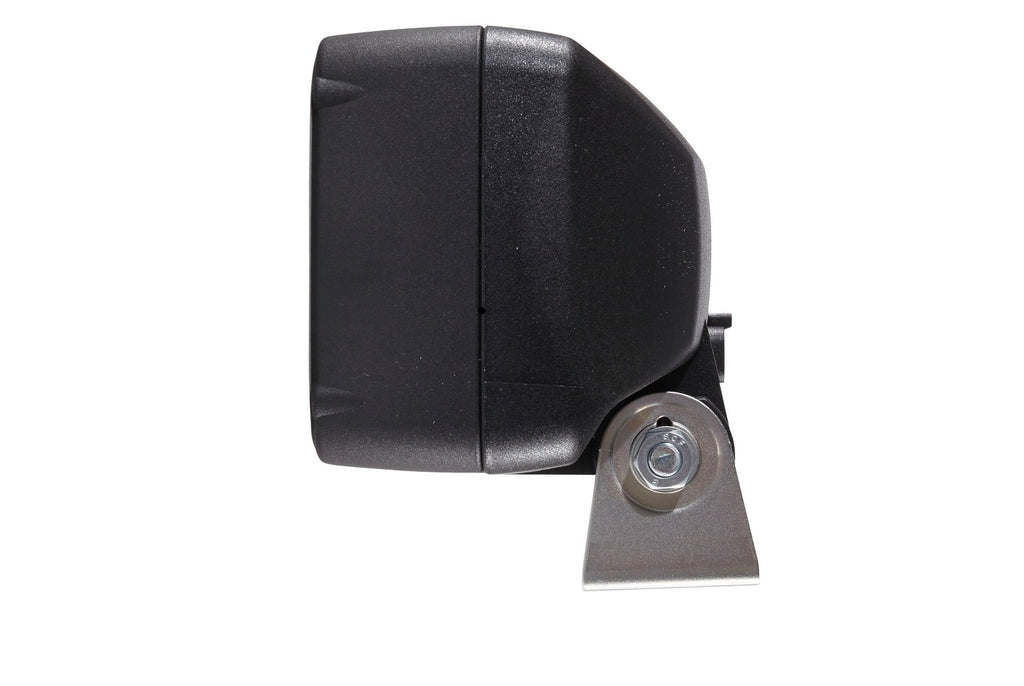

HELLA 1GA 007 506-491 Halogen-Worklight - Ultra Beam - 24/12V

Item Attributes: Mounting Type: mounting / Screw ConnectionFastening Type: Four-point mountingLight Design: HalogenLamp Type: H3Voltage: 24 V / 12 VHeight: 127 mmWidth: 112 mmDepth: 97 mmLight Distribution: Short distance lightingPlug: DEUTSCH plugProt.type (IP Code): IP6K9KPower consumption: 55 W / 70 WSupplementary Article/Info 2: without bulbsHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Material: GlassDiffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

The Ultra Beam is a compact and robust halogen worklight. The aluminium reflector of the worklight is based on free-form technology which makes it possible to illuminate the working area in a very targeted manner. Despite its compact dimensions the reflector provides excellent light output. The black lamp housing of this robust worklight is made of glass-fibre reinforced plastic which is acid-resistant and corrosion-resistant. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions the worklight can be used universally.

OE references: CATERPILLAR 199-3139; CATERPILLAR T11-1783; DEMAG 22581012; KOMATSU T111783; LIEBHERR 2 100 801; LIEBHERR 3 730 300; LIEBHERR 3 730 301; LIEBHERR 5 998 600; LIEBHERR 5 999 400; TEREX 22581012; TEREX 94722581012; TEREX T111783

Worklight;HELLA;Ultra Beam;97mm;Halogen;IP6K9K;Glass;DEUTSCH plug;ADR/ GGVS Checked;65W;Synthetic Material Housing;H3;24V;Surface Lighting;112mm;1GA 007 506-491;without bulbs;12V;mounting;126mm;
