HELLA 1G4 003 470-051 Halogen-Worklight - Matador - 24/12V

Item Attributes: Mounting Type: mounting / Screw ConnectionFastening Type: Four-point mountingLight Design: HalogenLamp Type: H3Voltage: 24 V / 12 VHeight: 263 mmWidth: 168 mmDepth: 126 mmLight Distribution: Short distance lightingPlug: open cable endsProt.type (IP Code): IP5K4KPower consumption: 35 W / 70 WSupplementary Article/Info 2: without switch / without bulbsHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Material: GlassDiffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

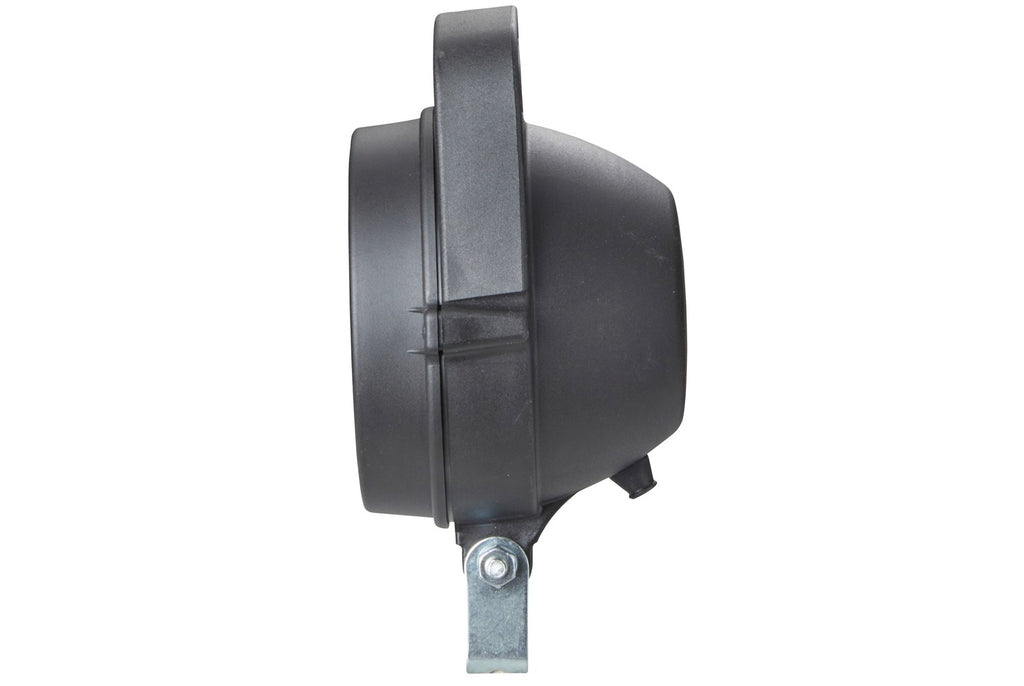

Together with the special honeycomb pattern in the diffusing lens the parabolic reflector enables homogeneous illumination of the working field at close range. The light source is an H3 bulb (not included in all versions). The worklight can be used (depending on the bulb) with both 12V and 24V on-board voltage. The black housing of this robust worklight is made of glass-fibre reinforced plastic. To protect the diffusing lens the housing is provided with a protruding rim at its front. The handle together with the swivel foot simplifies the adjustment of the work lights so that the working area can be optimally illuminated. The bracket enables a stable four-point attachment of the worklight. The cable entry is sealed by a grommet. Depending on the version the Matador offers additional advantages such as rotary switches (for versions -001 and -031) or protective grids (for versions -031 and -051). Article 1G4 003 470-141 is only suitable for vertical mounting as the power connection is made via an easily detachable pipe socket that fits onto push-on tubes (Ø 24 mm) for beacons.

OE references: ATLAS COPCO 0870693; ATLAS COPCO 2260031; BUCHER 7-655-3303; CASE IH 1740048; CASE IH 3 369718 R91; CATERPILLAR 120-6776; CATERPILLAR 5W-2681; CLAAS 057 097 51; DAF 086 7445; DEMAG 0870693; DEMAG 46128540; FORD V1C4415592AA; KÖGEL 80372; LANGENDORF 1084172; LIEBHERR 6 000 776; LIEBHERR 6 071 057 05; LIEBHERR 6 071 142 08; NOOTEBOOM 0225503; O&K 1740048; ROSENBAUER 520163; TEREX 0870693; TEREX 20038248; TEREX 2260031; TEREX 46128540; TEREX 5350658670; TEREX 94746128540; VOLVO 20005239651; VOLVO 5 239 651; WEIRO 11339; YANMAR 5350658670

Worklight;HELLA;Matador;Short distance lighting;Glass;Synthetic Material Housing;1G4 003 470-051;Halogen;IP5K4K;Bracket mounting;263mm;24V;126mm;140mm;without switch;168mm;without bulbs;mounting;Vertical;H3;12V;
