HELLA 1G4 003 470-011 Halogen-Worklight - Matador - 24/12V

Item Attributes: Mounting Type: mounting / Screw ConnectionFastening Type: Four-point mountingLight Design: HalogenLamp Type: H3Voltage: 24 V / 12 VHeight: 263 mmWidth: 168 mmDepth: 116 mmLight Distribution: Short distance lightingPlug: open cable endsProt.type (IP Code): IP5K4KPower consumption: 70 W / 35 WSupplementary Article/Info 2: without bulbs / without switchHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Material: GlassDiffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

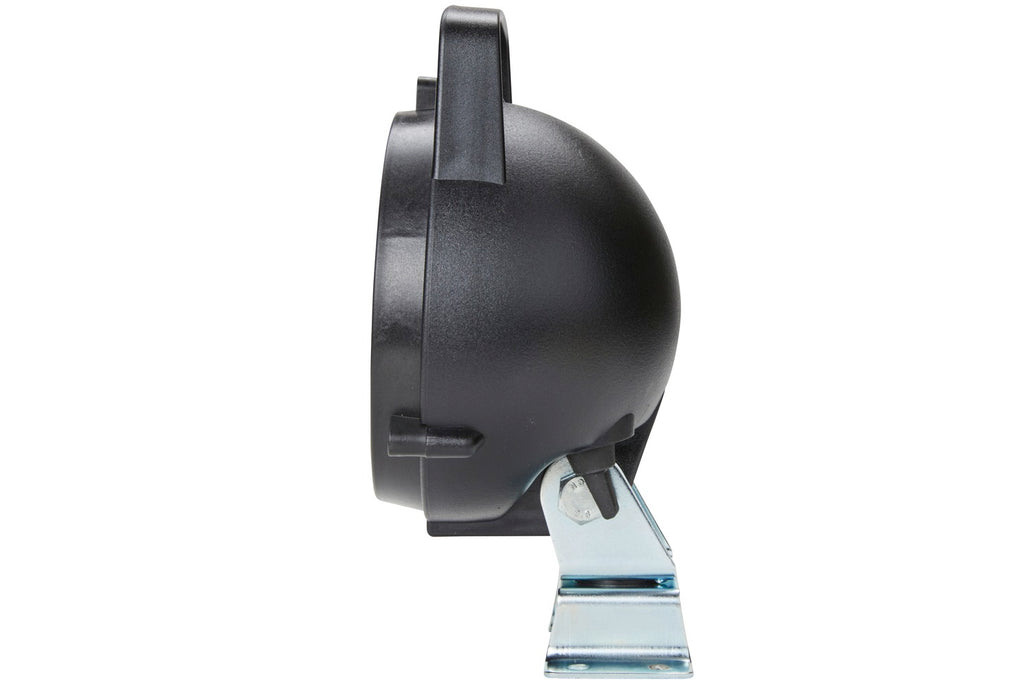

Together with the special honeycomb pattern in the diffusing lens the parabolic reflector enables homogeneous illumination of the working field at close range. The light source is an H3 bulb (not included in all versions). The worklight can be used (depending on the bulb) with both 12V and 24V on-board voltage. The black housing of this robust worklight is made of glass-fibre reinforced plastic. To protect the diffusing lens the housing is provided with a protruding rim at its front. The handle together with the swivel foot simplifies the adjustment of the work lights so that the working area can be optimally illuminated. The bracket enables a stable four-point attachment of the worklight. The cable entry is sealed by a grommet. Depending on the version the Matador offers additional advantages such as rotary switches (for versions -001 and -031) or protective grids (for versions -031 and -051). Article 1G4 003 470-141 is only suitable for vertical mounting as the power connection is made via an easily detachable pipe socket that fits onto push-on tubes (Ø 24 mm) for beacons.

OE references: AGRIFAC 7788705; AHLMANN 1829178; AHLMANN 4195269A; BUCHER 7655-3321; DAF 084 1981; MAFI 0005800033; MANITOU 4195269A; SCANIA 1 906 625; STEYR 34-172-010; VALMET 586340; ZIEGLER 407201

Worklight;HELLA;Matador;116mm;Halogen;mounting;24V;140mm;IP5K4K;168mm;1G4 003 470-011;without switch;without bulbs;263mm;Bracket mounting;Glass;12V;Short distance lighting;Vertical;Synthetic Material Housing;H3;
