HELLA 1G4 003 470-001 Halogen-Worklight - Matador - 12/24V

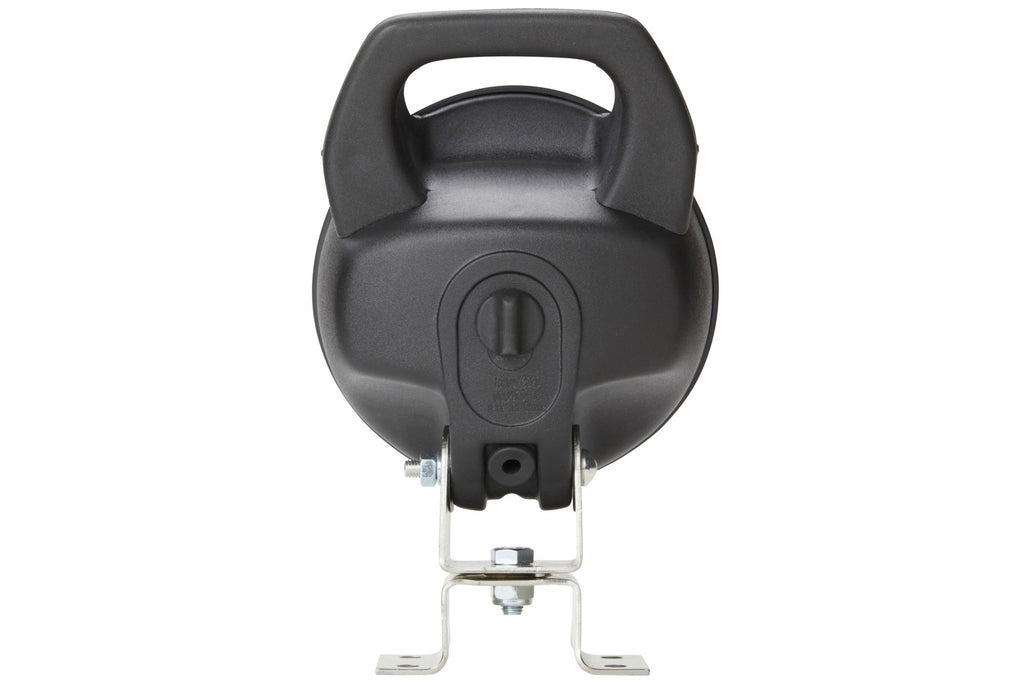

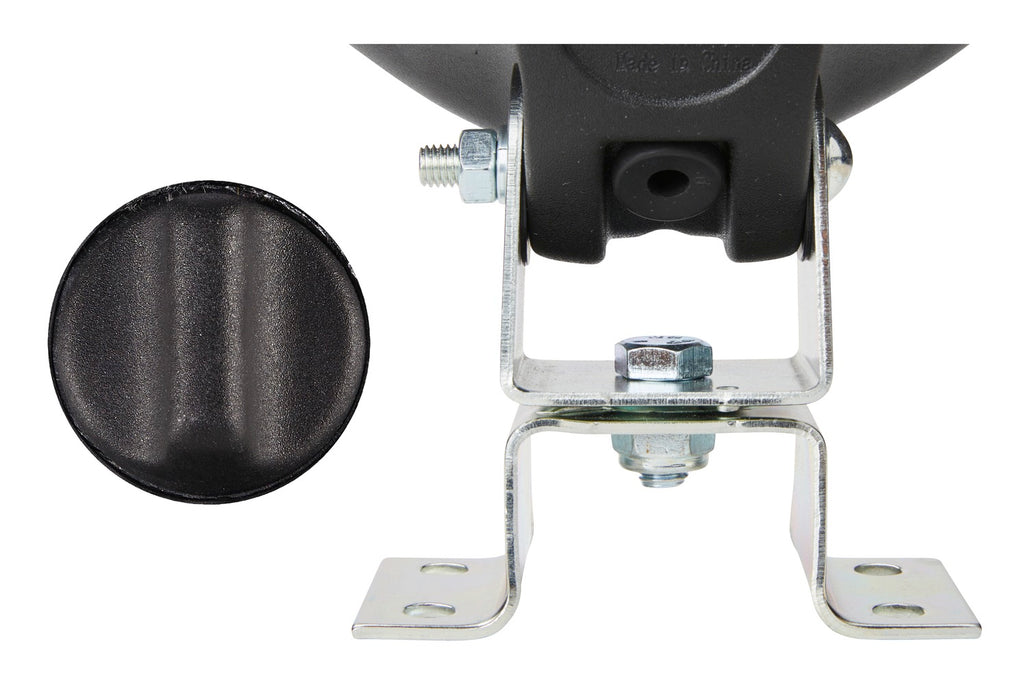

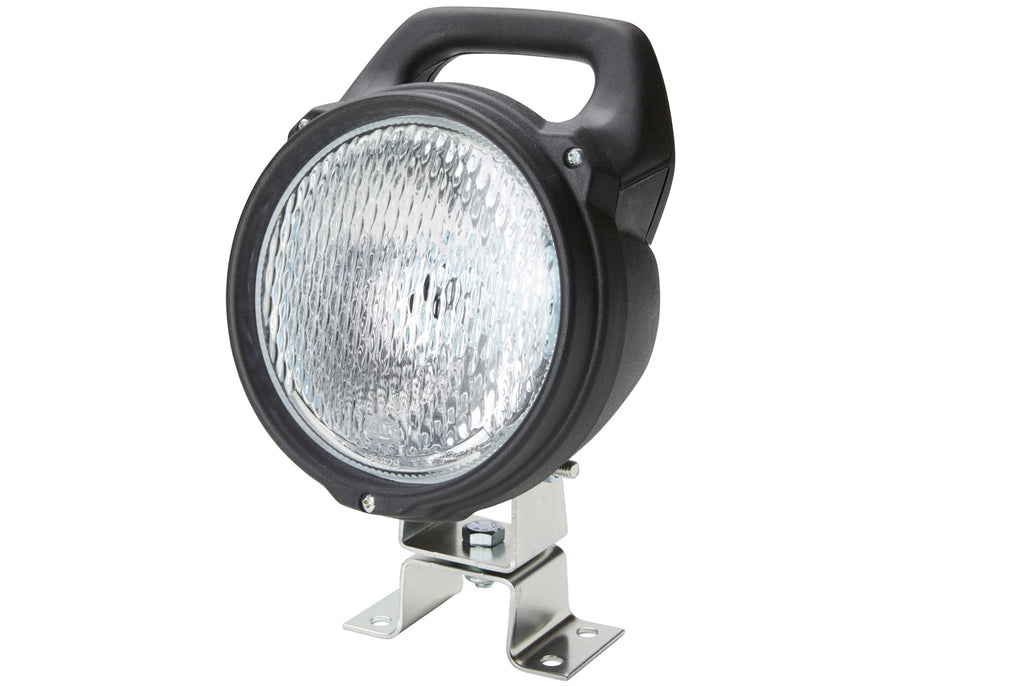

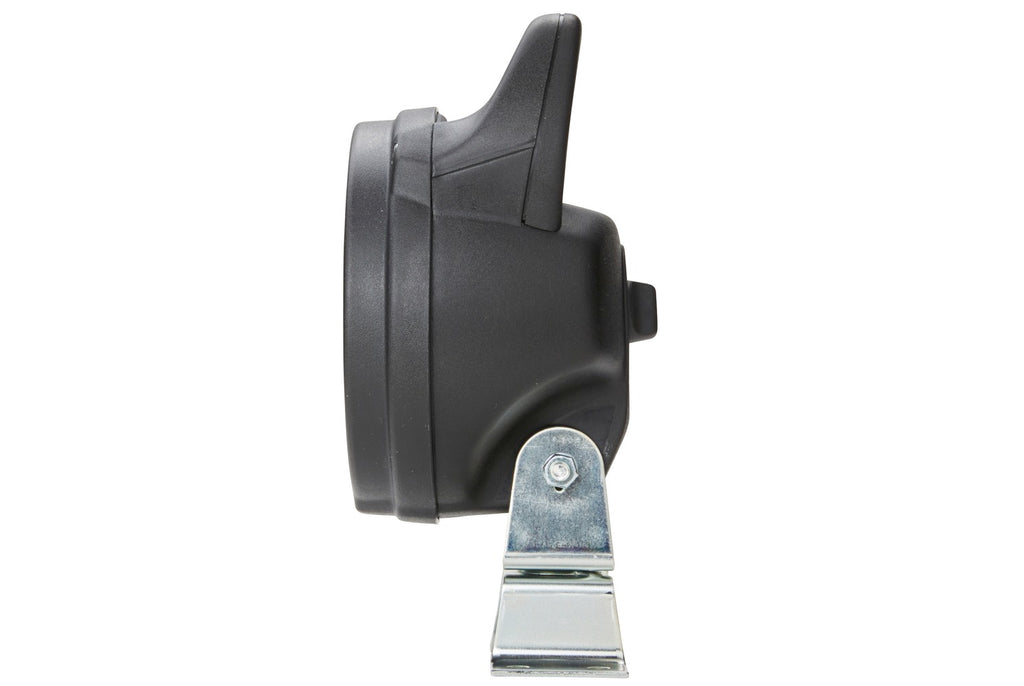

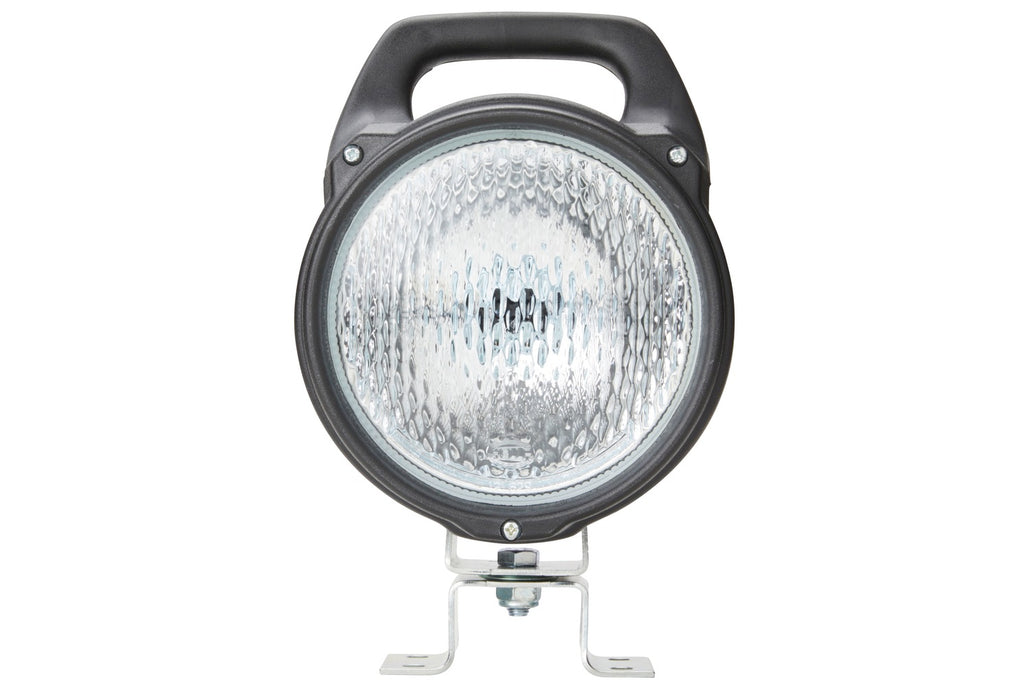

Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working field at close range. The light source is an H3 bulb (not included in all versions). The worklight can be used (depending on the bulb) with both 12V and 24V on-board voltage. The black housing of this robust worklight is made of glass-fibre reinforced plastic. To protect the diffusing lens, the housing is provided with a protruding rim at its front. The handle, together with the swivel foot, simplifies the adjustment of the work lights so that the working area can be optimally illuminated. The bracket enables a stable four-point attachment of the worklight. The cable entry is sealed by a grommet. Depending on the version, the Matador offers additional advantages such as rotary switches (for versions -001 and -031) or protective grids (for versions -031 and -051). Article 1G4 003 470-141 is only suitable for vertical mounting, as the power connection is made via an easily detachable pipe socket that fits onto push-on tubes (Ø 24 mm) for beacons.

Item Attributes: Mounting Type: Screw Connection / mountingFastening Type: Four-point attachmentLight Design: HalogenLamp Type: H3Voltage: 24 V / 12 VHeight: 263 mmWidth: 168 mmDepth: 116 mmLight Distribution: Short distance lightingPlug: open cable endsProt.type (IP Code): IP5K4KPower consumption: 70 W / 35 WSupplementary Article/Info 2: without bulbsHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Material: GlassDiffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!
