HELLA 1G0 996 476-131 LED-Worklight - Modul 70 Gen. IV - 24/12V

Item Attributes: Mounting Type: Screw Connection / FittingFastening Type: Three-point mountingLight Design: LEDLamp Type: LEDVoltage: 12 V / 24 VHeight: 85 mmWidth: 85 mmDepth: 73 mmLight Distribution: Surface LightingFulfils ECE norm.: R10Plug: open cable endsProt.type (IP Code): IP6K9K / IP6K7Luminous Flux: 2500 lmColour Temperature: 6500 KNumber of LEDs: 3Power consumption: 30 WCable: 2000 mmHousing Type: Aluminium HousingHousing Colour: BlackDiffusing Lens Material: PC (Polycarbonate)Diffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

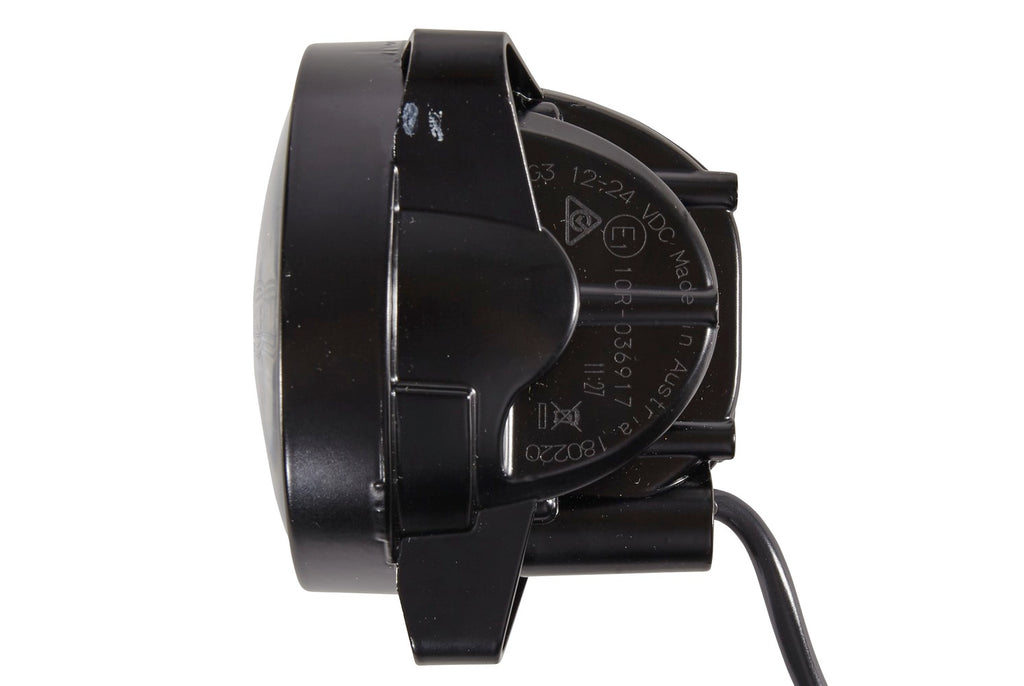

With the Module 70 LED Generation IV HELLA is launching a compact worklight with very powerful light output. For the first time LED light output at xenon level can be achieved in this compact design. Equipped with 3 high-performance multi-chip LEDs this worklight produces 2500 measured lumens with an energy consumption of only 30 watts. The black housing of the Module 70 LED Gen. IV is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs. The Module 70 LED Gen. IV is a robust worklight for various applications despite its compact form. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. In addition to classic close-range and wide-range illumination there is the Module 70 LED Gen. IV in another extra-wide special illumination. With a colour temperature of 6500 Kelvin the light of the LED worklight is very similar to daylight making it possible to distinguish colours more clearly in the dark. Thus making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The electronics of the Module 70 LED Gen. IV is multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. In addition temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night.

OE references: KUBOTA 3J0366243A

Worklight;HELLA;Modul 70 Gen. IV;LED;2000mm;open cable ends;2500lm;Fitting;6500K;ECE-R10;Aluminium Housing;Surface Lighting;Black;Electromagnetic Compatibility (EMC);24V;3;1G0 996 476-131;85mm;IP6K8;30W;IP6K9K;73mm;12V;85mm;
