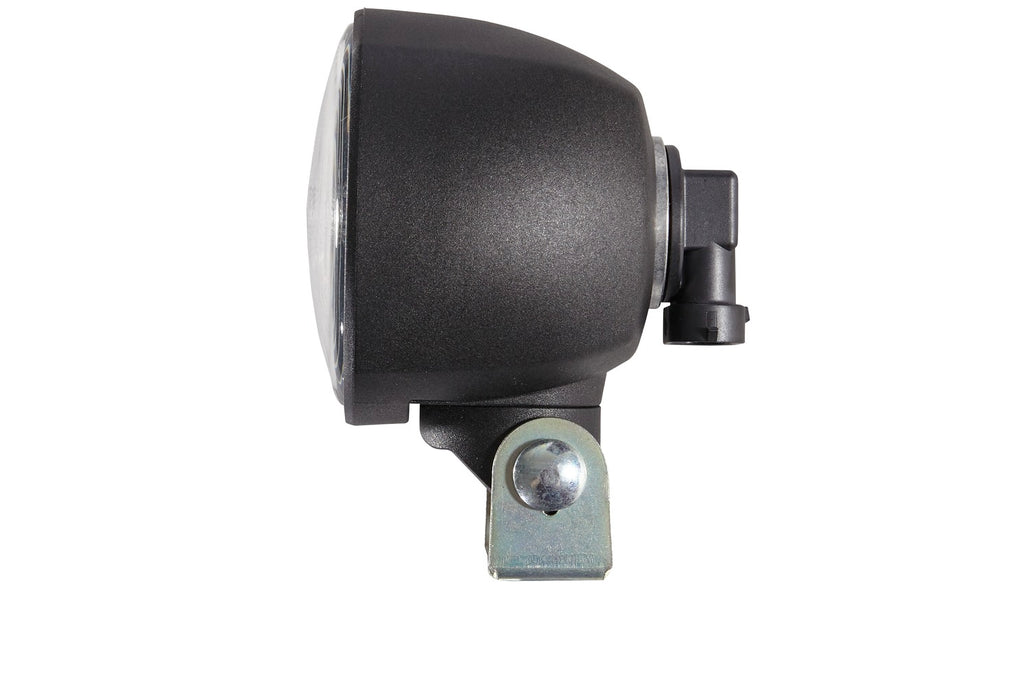

HELLA 1G0 996 176-131 Halogen-Worklight - Modul 70 - 12V

Item Attributes: Mounting Type: Bolted / mountingFastening Type: Swivelling Mounting Bracket / SuspendedLight Design: HalogenLamp Type: H9Voltage: 12 VHeight: 113 mmWidth: 83 mmDepth: 88 mmLight Distribution: Short distance lightingPlug: Protected contact plugProt.type (IP Code): IP5K9KPower consumption: 65 WSupplementary Article/Info 2: without cableHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Material: Polyamid 12Diffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

The Module 70 with H9 bulb is a compact worklight with an extremely small installation space. Despite its small size the free-form reflector made of die-cast aluminium produces excellent light output. Thanks to the optics-free hardened diffusing lens the unit shines with the most modern design. Versions for illuminating the near working area or with long-range illumination are optionally available. The use of the H9 bulb results in significant advantages for the customer. The robust headlamp housing is made of glass-fibre reinforced plastic and is resistant to acid and corrosion. Due to its compact dimensions the worklight can be used universally. The housing is firmly glued to the reflector and the diffusing lens. The plug-in connection is made directly via the bulb. Fast tool-free bulb replacement is guaranteed with all versions. This headlamp is available as a surface-mounted headlamp (depending on the version: upright or suspended) and as a recessed version.

OE references: AGCO G650 901 110 010; ATLAS COPCO 7700168; CLAAS 001 664 50; CLAAS 112 440 80; CLAAS 112 440 90; CLAAS 16645; CLAAS 4-43000000180; DEUTZ-FAHR 2.8039.018.0; DEUTZ-FAHR 2.8039.019.0; DEUTZ-FAHR 2.8039.024.0; FENDT G650.901.110.010; JOHN DEERE AX E1 1057; JOHN DEERE AX E2 0661; LANDINI 6518900J90/P; SAME 2.8039.018.0; TEREX 5350661237; TEREX 7700168; YANMAR 5350661237

Worklight;HELLA;Modul 70;88mm;Synthetic Material Housing;with bulb;113mm;mounting;1G0 996 176-131;without cable;Suspended;Bolted;65W;H9;83mm;Black;IP5K9K;H9 Stecker;12V;Halogen;Short distance lighting;
