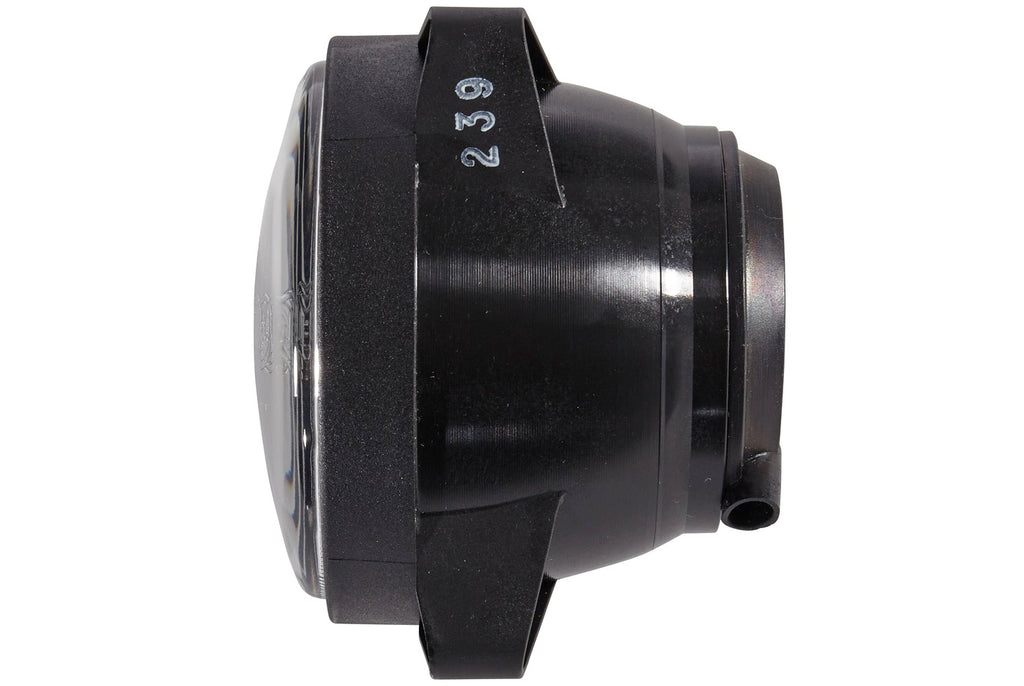

HELLA 1G0 996 176-061 Halogen-Worklight - Modul 70 - 12V

Item Attributes: Mounting Type: Fitting / Screw ConnectionFastening Type: Three-point mountingLight Design: HalogenLamp Type: H9Voltage: 12 VHeight: 95 mmWidth: 85 mmDepth: 85 mmLight Distribution: Short distance lightingPlug: open cable endsProt.type (IP Code): IP5K9KPower consumption: 65 WSupplementary Article/Info 2: without cableHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Material: GlassDiffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

The Module 70 with H9 bulb is a compact worklight with an extremely small installation space. Despite its small size the free-form reflector made of die-cast aluminium produces excellent light output. Thanks to the optics-free hardened diffusing lens the unit shines with the most modern design. Versions for illuminating the near working area or with long-range illumination are optionally available. The use of the H9 bulb results in significant advantages for the customer. The robust headlamp housing is made of glass-fibre reinforced plastic and is resistant to acid and corrosion. Due to its compact dimensions the worklight can be used universally. The housing is firmly glued to the reflector and the diffusing lens. The plug-in connection is made directly via the bulb. Fast tool-free bulb replacement is guaranteed with all versions. This headlamp is available as a surface-mounted headlamp (depending on the version: upright or suspended) and as a recessed version.

OE references: AGCO 519438D1; AGCO G334 900 111 020; CASE IH 8 752 189 0; CLAAS 11244010; DEUTZ-FAHR 2.8039.017.0; FENDT G334.900.111.020; HAMM 2074846; LANDINI 6514943M91; REFORM 900530202; SAME 2.8039.017.0

Worklight;HELLA;Modul 70;without cable;65W;IP5K9K;1G0 996 176-061;Halogen;Fitting;85mm;12V;Synthetic Material Housing;H9 Stecker;85mm;H9;Short distance lighting;95mm;with bulb;Black;
