HELLA 1G0 996 176-001 Halogen-Worklight - Modul 70 - 24/12V

Item Attributes: Mounting Type: Bolted / mountingFastening Type: Vertical / Swivelling Mounting BracketLight Design: HalogenLamp Type: H3Voltage: 24 V / 12 VHeight: 113 mmWidth: 83 mmDepth: 76 mmLight Distribution: Short distance lightingPlug: open cable endsProt.type (IP Code): IP5K4KPower consumption: 35 W / 70 WSupplementary Article/Info 2: without cable / with rubber grommet / without bulbsHousing Type: Synthetic Material HousingHousing Colour: BlackDiffusing Lens Material: GlassDiffusing Lens Type: Patterned diffusing lensAssembly by qualified personnel required!

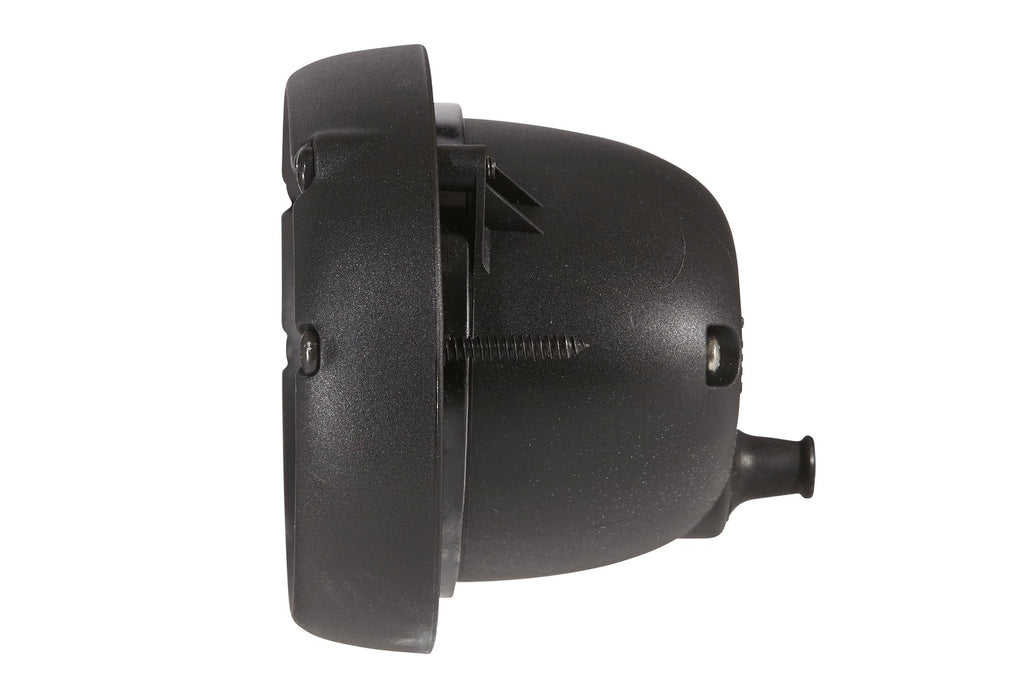

The Module 70 with H3 bulb is a compact worklight with an extremely small installation space. Despite its small size the die-cast aluminium free-form reflector produces excellent light output. Thanks to the optics-free hardened diffusing lens the unit shines with the most modern design. Versions for illuminating the near working area or with long-range illumination are optionally available. The robust headlamp housing is made of glass-fibre reinforced plastic and is resistant to acid and corrosion. Due to its compact dimensions the worklight can be used universally. The housing is firmly glued to the reflector and the diffusing lens. The cable exit is via a rubber cap that can be removed for bulb replacement. Fast tool-free bulb replacement is guaranteed with all versions. This headlamp is available as a surface-mounted (depending on the version: upright or suspended) and also as a recessed version.

OE references: AEBI 1083409-2; AEBI 1109539-8; BUCHER 7019027; DAF 152 7006; HYSTER S01374140056; JOHN DEERE AH 22 8013; KRONE 200849570; LIEBHERR 9 000 014 81

Worklight;HELLA;Modul 70;IP5K4K;without cable;Synthetic Material Housing;1G0 996 176-001;H3;Bolted;Short distance lighting;113mm;83mm;Black;without bulbs;Halogen;mounting;24V;Vertical;with rubber grommet;12V;76mm;
