Description

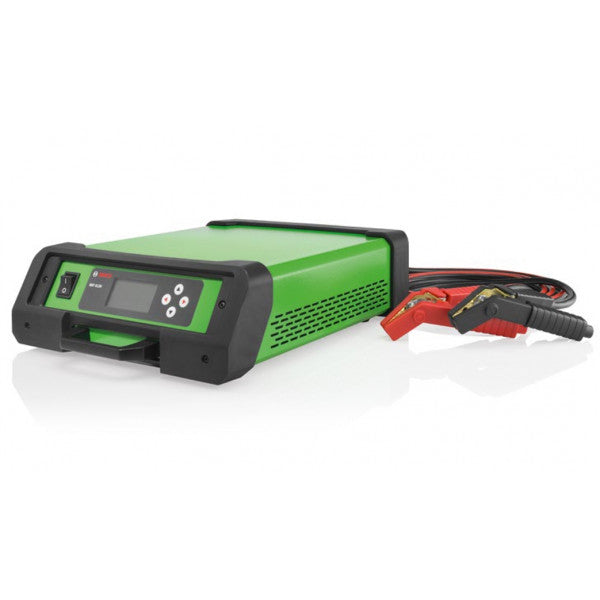

The Bosch BAT 6120 is a future-proof, professional, two-in-one battery support solution for automotive workshops.
Functioning dependably as a smart and fast battery charger, for lead acid and lithium batteries, or as a 120 A continuous power supply.
FEATURES
- Easy access to BAT 6120 Help Center web page through QR code displayed on the screen
- Easy to use large 4 colour backlight LCD display including wall mount mode
- Fits underneath a car in show room
- Desk, floor or wall operations possible
- Flexible operation modes to fulfill customer needs
- Maximum power output: up to 1750 W
- Interface available in 26 languages
- 12 V Lead Acid Battery Charge. Charging Diagnosis / 12 V Lithium Battery Charge, Wake Up
- Supports Flooded/AGM/EFB/GEL/Lithium (LFP) Batteries
- Supports 120 A DC Continuous Output (AC120 V - 240 V, 25 degree Celcius)
INFO
- Max.
- 120 A continuous current
TECHNICAL DATA
| Max. Charge current intensity 12V | 120 A |
| Length of the charging cable | 3 m (twin cable) |
| Cross-section charging cable | 25 mm sq. |
| Power input | 120 - 240 V AC |
| Weight (without charging and power cable) | 8.5 kg |
| Charging characteristic | up to 120 Amperes continuous. Battery types: UNI, WET, EFB, AGM, VRLA/GEL, LFP (LiFePO4) |
| Backup mode | 12.0 V - 13.2 V adjustable, default 12.6 V / 10 A - 30 A adjustable power limit, default 20 A |
| Floating-mode operation | 12.0 V - 13.2 V adjustable, default 13.5 V |
| Function temperature range | 0 – 40 degree(C) |
| Main voltage | 220 - 240 V, 50/60 Hz |
| Battery nominal voltage | 12 V |
| Protection type (DIN 40050) | IP 20 D |
| Dimensions (W x H x D) | 329 x 116 x 433 mm |
