Description

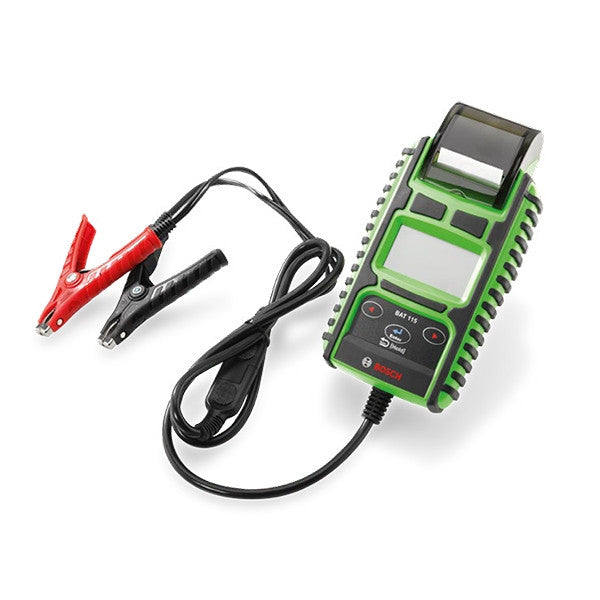

Offering a wide-range of testing norms, such as EN, EN2, DIN, SAE, IEC, JIS and MCA, the versatile BAT 115 battery tester tests 6 V and 12 V batteries from 40 - 2000 CCA, including lead-acid, EFB, Gel and AGM (flat and spiral) using a micro-load test for proven accurate results while also offering the ability to test 12 V and 24 V charging systems with a diode/ripple test.
FEATURES
- Supports testing of starting and charging systems
- Detachable test clamps: For service or replacement
- Only 1100 g with robust housing: Provides easy handling and durability for daily use
- 1.8 meter testing cable: For excellent coverage around the vehicle in the workshop
- Integrated printer presenting state of health and state of charge percentage: Provides the customer with clear and easy to understand graphical printouts for their records
- Guided menus in 25 languages with 3-button operation: Easy and intuitive to use
- EN, EN2, DIN, SAE, IEC, JIS and MCA testing norms: For versatile testing of 6 V and 12 V batteries, and the 12 V and 24 V starter charging systems
- Large LCD screen: For clear, legible results which can be referenced quickly
- Micro-load test procedure: Produces fast and reliable measurement results
TECHNICAL DATA
| Battery nominal voltage | 6 V / 12 V |
| Application | Passenger car, light commercial vehicle, motorcycle, marine |
| Battery types | Lead-acid, EFB, Gel & AGM (flat and spiral) |
| Test standards | EN, EN2, DIN, SAE, IEC, JIS, MCA |
| Battery size (in acc. with CCA) | 40 – 2000 A |
| Printer | Integrated thermal printer |
| Number of Menu languages | 25 languages |
| Dimensions (W x H x D) | approx. 250 x 130 x 60mm |
| Starting/charging system test | 12 V / 24 V |
| Weight approx. | 1100 g |
| Operating temperature | 0 – 40 degree(C) |
