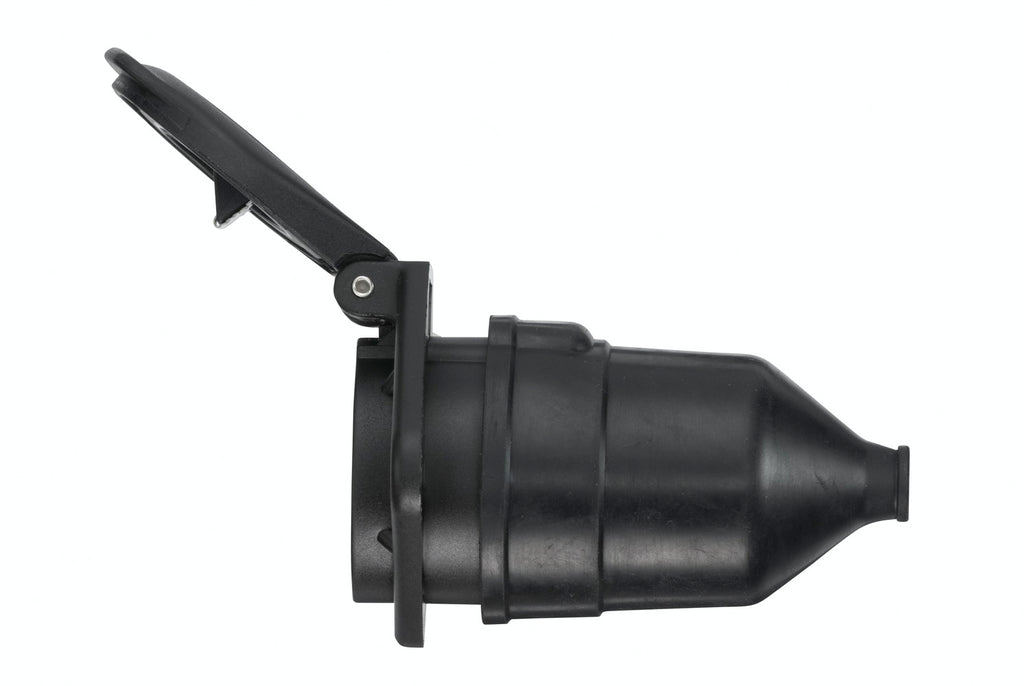

HELLA 8JB 008 085-011 Socket - 24V - 7-pin connector - Plug: Screw Contact

Item Attributes: Supplementary Article/Info 2: with lidVoltage: 24 VCapacity at 24V: 15ADIN/ISO: 3731Material: PlasticNumber of pins: 7 -pin connectorPlug: Screw ContactSVHC: 7439-92-1; LeadAssembly by qualified personnel required!

The 7-pin 24 V plug-in system according to ISO 1185 / ISO 3731 is currently the most widely used system for the electrical connection between towing vehicle and trailer or tractor and semi-trailer in the commercial vehicle sector. The system is primarily used for applications with average requirements. It consists of a standard connector type N according to ISO 1185 and an additional connector type S according to ISO 3731. The additional system differs from the standard system by its white housing contact inserts and non-interchangeable contact arrangement.

OE references: JAEGER 111063; ROSENBAUER 614943; SCANIA 1 934 337

Socket;HELLA;7-pin connector;Screw Contact;3731;Plastic;with lid;24V;7439-92-1; Lead;15A;
